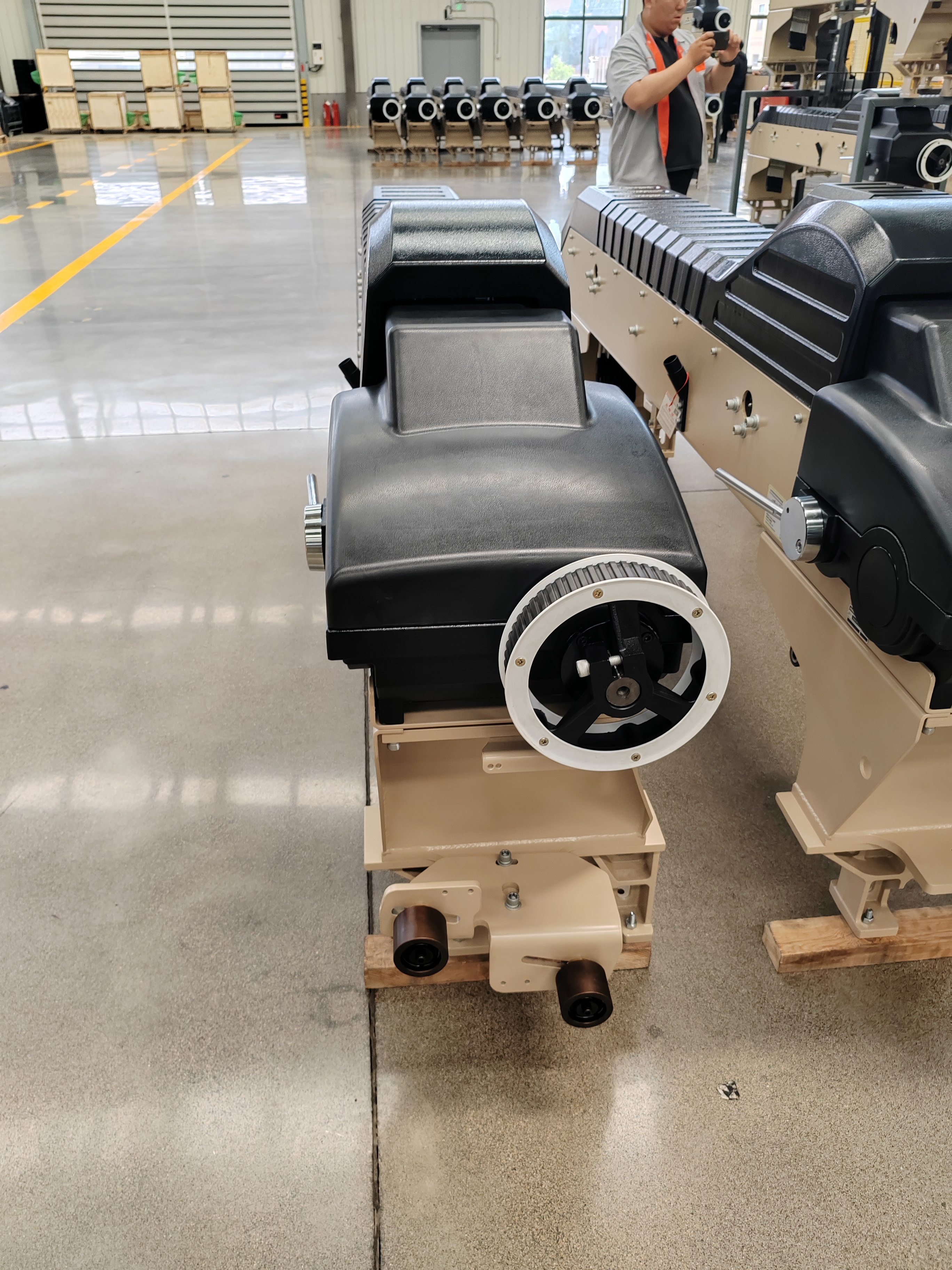

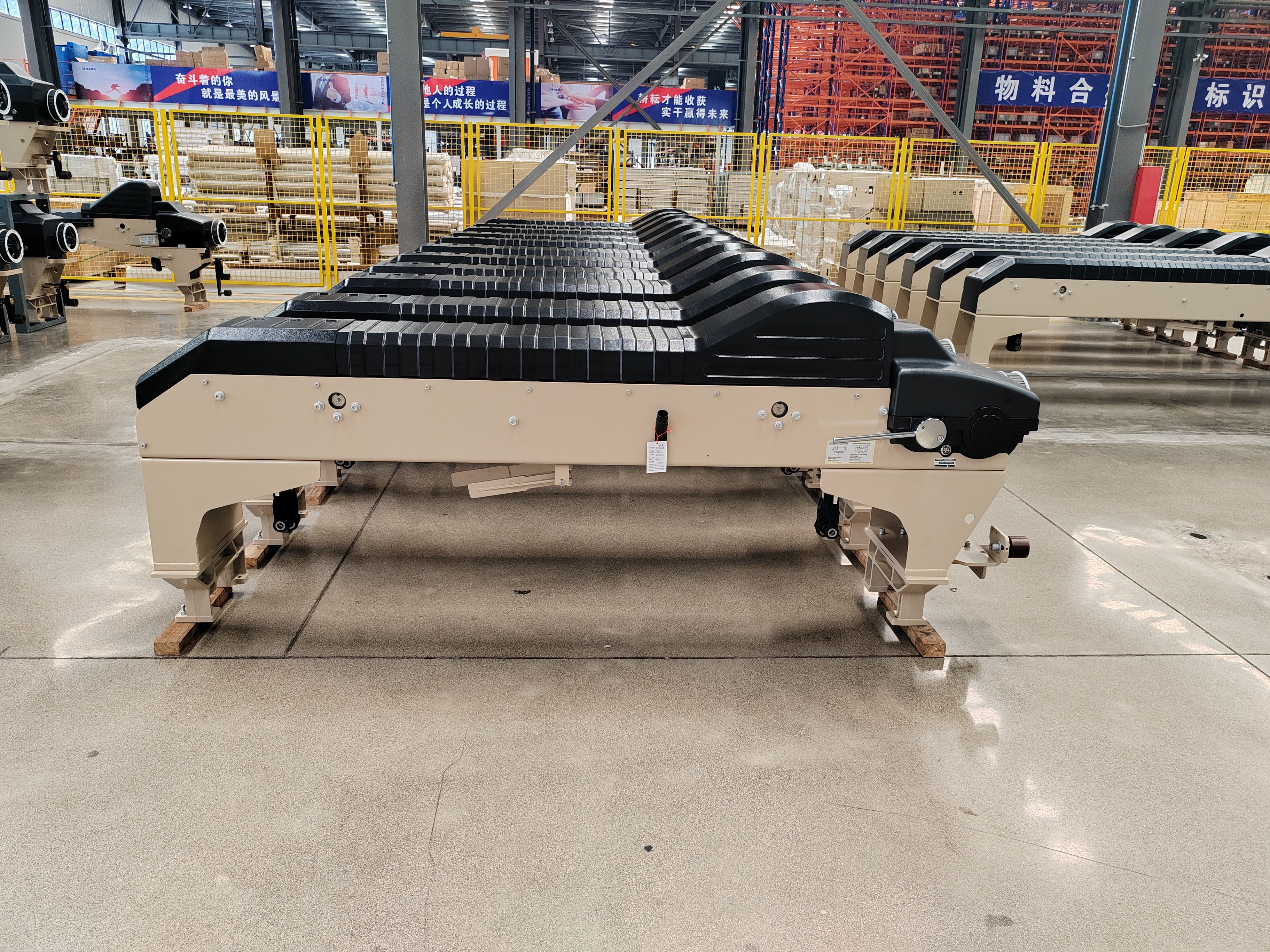

C30 series Opening Device using for Water Jet and Air Jet Shuttle Less Loom

Haijia autonomously creates and manufactures advanced conjugate cam shedding devices with exceptional speed, extensively utilized in diverse water-jet loom shedding techniques, capable of weaving over 150 fabrics including plain weave, twill, and satin weave in just twelve cycles.
Availability:
Quantity:
Inquire Add to Basket

  • HJ-C30

  • HAIJIA

HJ-C30 Cam Shedding


Adaptive loom: water jet loom


Reed space：150cm~360cm


Maximum running speed:980rpm


Number of weft cycle:12


Heald frame spacing:14mm


Maximum heald lifting:10 pcs


Heddle specification:280MM


Shedding capacity:54mm-110mm




The positive conjugate cam shedding device is widely used in various models of water jet loom to weave plain、twill 、satin and other weaves within 12 weft cycles of the fabric.


The four-axis machining center isused for one-time clamping and the over all frame box has been optimized to have a smoother appearance and more scientific structure. The enhanced dimensional precision effectively diminishes the vibration and noise produced while operating the equipment,making it more appropriate for manufacturing high-speed, wide reed and heavy fabrics. The device is furnished with a swift oil drain joint,facilitating effortless and rapid oil change and drainage.


The frame parts are made of integrated bending steel plate cross beam which is combined with the fully enclosed cover shell by electrophoresis and spraying process to enhance the safety、waterproof and anti-corrosion of the whole machine.The connection method between the box body and the U-beam is optimized to enhance the stability of the machine.
