HA-9020N Series High Speed Air Jet Loom Machine

The HA-9020N Series High Speed Air Jet Loom Machine is an award-winning textile innovation, recognized as the "Light of Textile" by China Textile Industry Federation. This advanced model features six optimized nozzles for producing high-value-added fabrics with diverse weft yarns, delivering exceptional stability, reduced vibration, and superior energy efficiency.
- Award-winning technology: "Light of Textile" 2019 achievement by China Textile Industry Federation
- Enhanced performance: 6-nozzle system for high-value fabric production with multiple weft yarns
- Operational excellence: Low vibration, high stability, and energy-saving design
- Flexible configurations: Optional motor drives (2.2KW-6.5KW), pump systems, and shedding mechanisms
- Safety features: Two-hand operation control buttons for secure running operation
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • HA-9020N Air jet loom

  • Haijia

HA-9020N Series High Speed Air Jet Loom Machine Front View

Product Description

The HA-9020N Series represents a definitive leap in weaving technology, focusing on the intersection of rapid production and meticulous fabric care. By integrating an intelligent multi-nozzle configuration, the air jet system maintains an optimal airflow trajectory. This precise pneumatic control gently yet swiftly guides the weft yarn across the shed, reducing yarn breakage and minimizing raw material waste. The resulting fabric feels consistently smooth, with a tight, uniform weave that appeals to discerning textile procurers.

  • Structural Rigidity: The heavy-duty foundation absorbs kinetic energy, preventing micro-shifts during maximum RPM operation.

  • Moisture Resilience: Enhanced sealing around sensitive electronics permits safe operation in environments requiring high humidity for specific yarn types.

  • Versatile Shedding Options: Configurable with 4, 6, or 8-piece crank shedding, or up to 14-piece positive cam shedding, accommodating complex weave patterns.

  • Energy Optimization: The aerodynamic nozzle design reduces compressed air consumption, directly lowering daily operational utility costs.

Close up of the shedding mechanism and reinforced frame on the HA-9020N loom

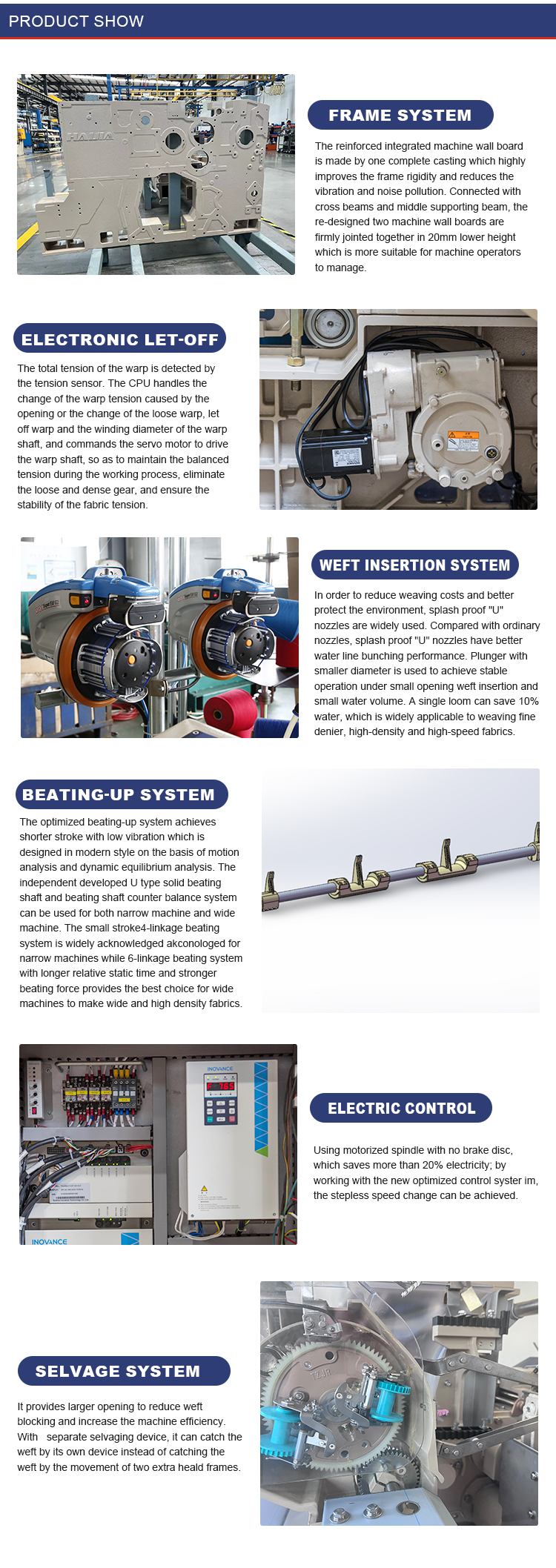

Comprehensive structural breakdown of the HA-9020N air jet weaving machine

Product Parameters

NO.

Item

Technical Parameters

1

The Effective reed width(cm)

Normal reed width: 0---60cm(170~230cm); 0---80cm(≥280cm)

2

Starting mode

Motorized spindle; Super start motor drive(Optional)

3

Motor capacity

2.2KW, 3.0KW, 3.7KW,  6.5KW

4

Running operation

Two-hand operation of control buttons

5

Pump

Single pump; Double pump(Optional)

6

Nozzle

Normal Nozzle, "U" shaped Nozzle

7

Crank shedding

4-piece type; 6-piece type; 8-piece type(Optional)

8

Positive cam shedding

6,8,10 piece type,12,14 piece type(Optional)

Company Profile

HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development, With the unremitting effort, our products have been exported to more than 30 countries around the world. At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. We has two smart manufacturing plants, one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts. We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees, cover 150,000 sqm and an annual production capacity of over 20,000 units.

Global Certifications and Quality Assurance

Every HA-9020N loom undergoes a rigorous, standardized manufacturing protocol before leaving the facility. Our production lines strictly adhere to international quality benchmarks, holding authoritative certifications including CE, ISO9001:2000, and SGS. This commitment to excellence is supported by a comprehensive component traceability system and a strict factory exit inspection process. Buyers can trust that each machine delivers verified, consistent performance right out of the crate.

Dedicated Technical Support Ecosystem

Understanding the critical nature of uninterrupted production, we provide a full 1-year warranty on the complete machine alongside a 7/24 all-weather rapid response service. Through our exclusive Zhiduoduo SaaS platform, facility managers gain access to a global, streamlined network for textile machinery spare parts. This digital infrastructure ensures rapid deployment of necessary components, minimizing downtime and maximizing the operational lifespan of your investment.

Haijia global service network and SaaS platform interface
