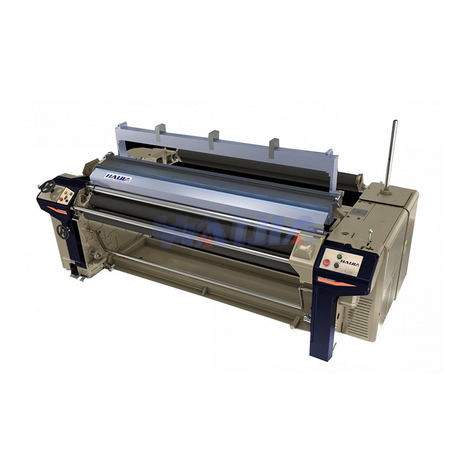

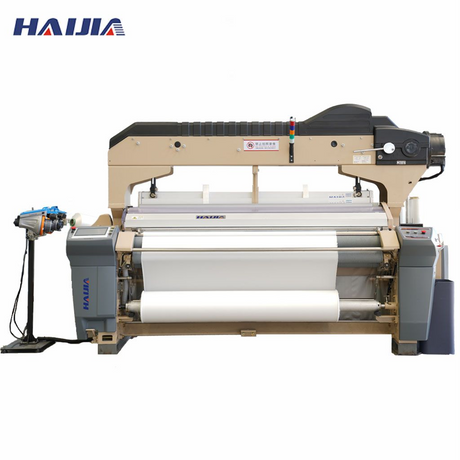

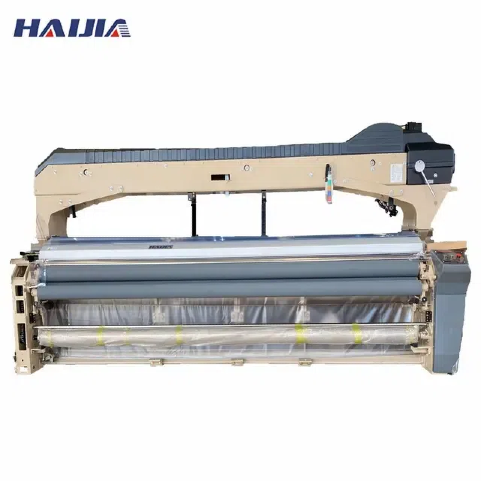

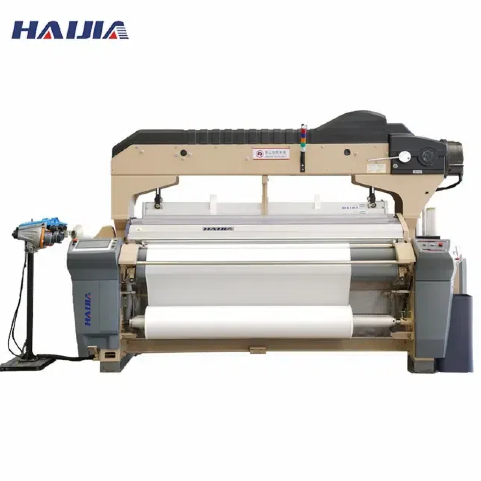

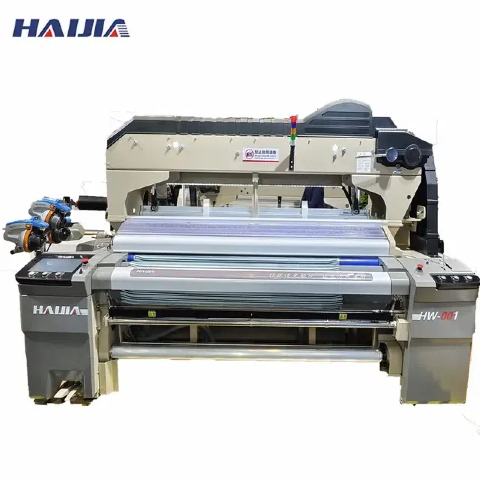

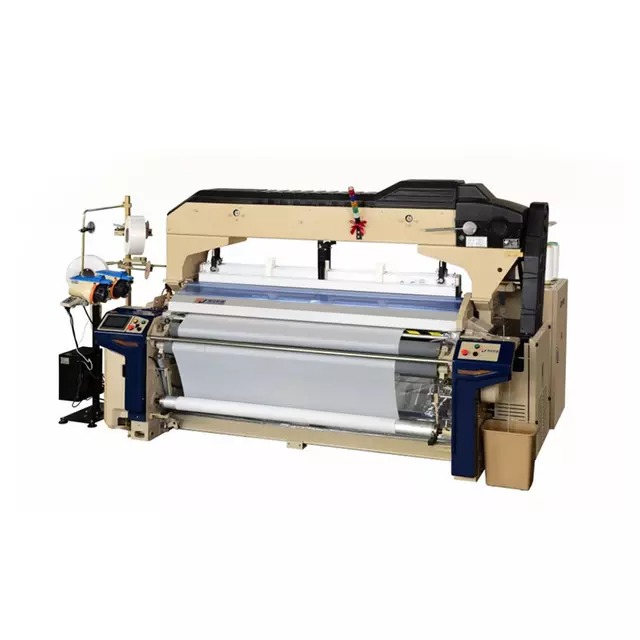

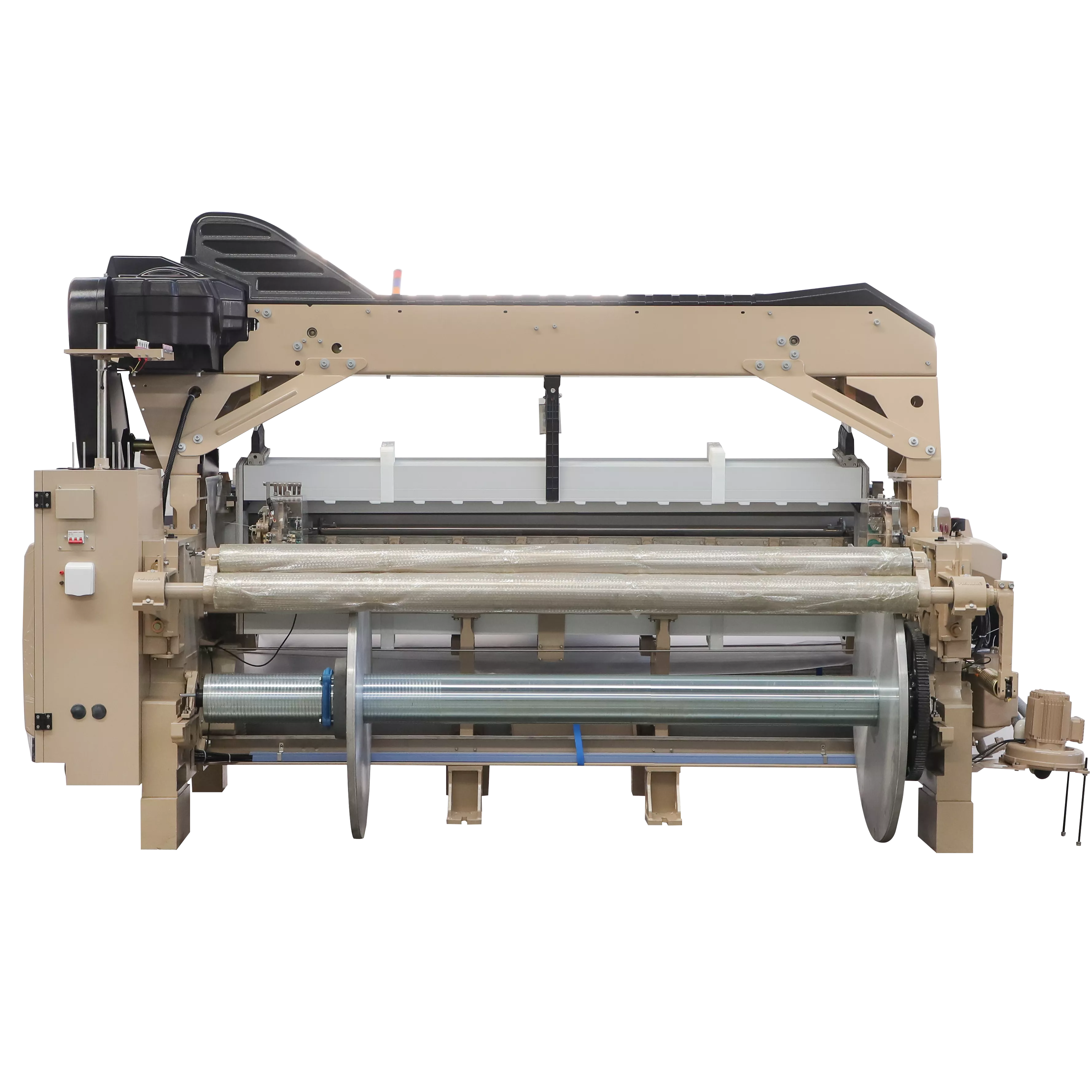

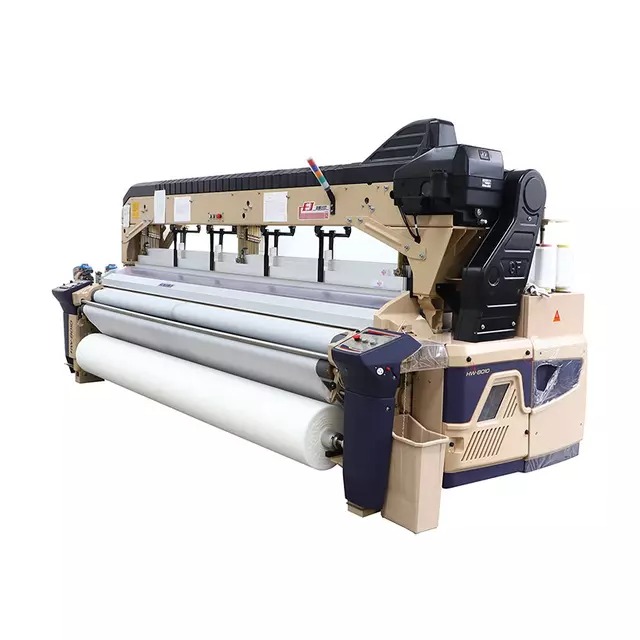

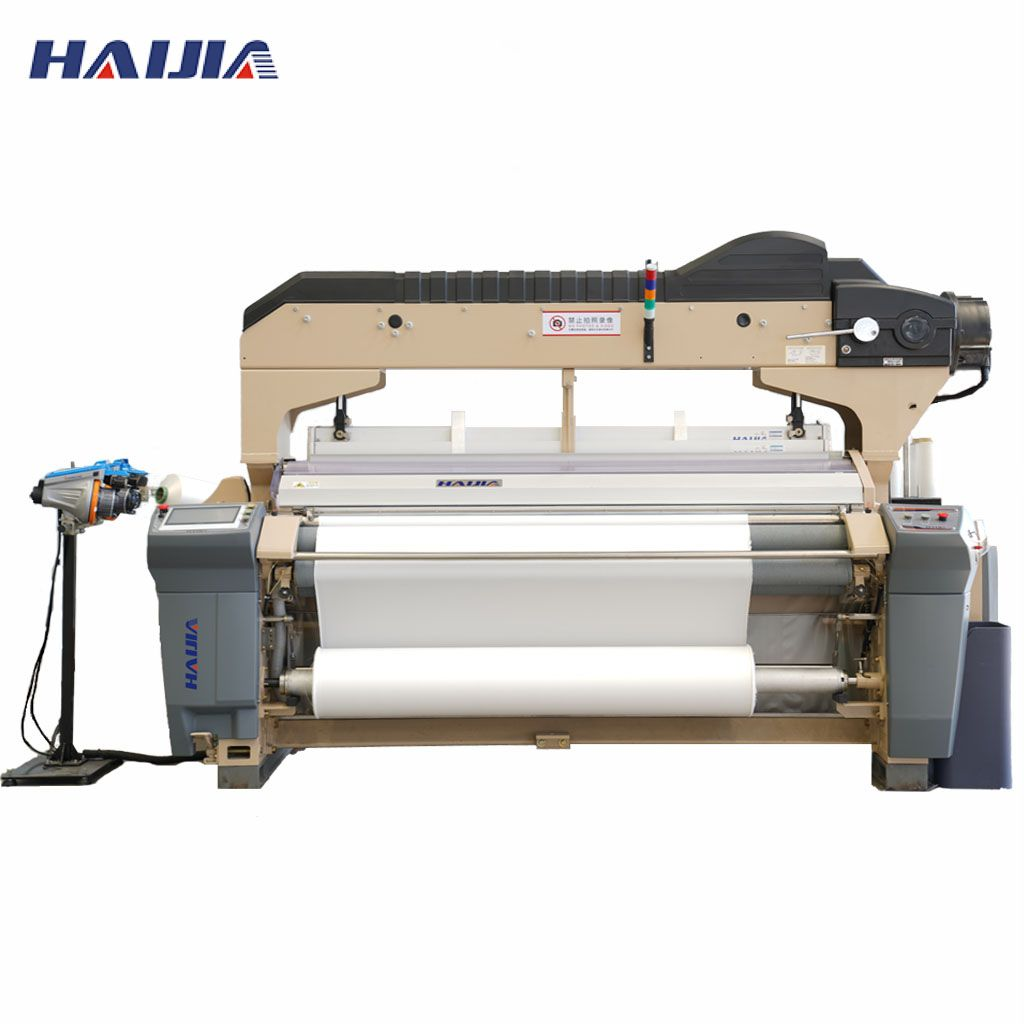

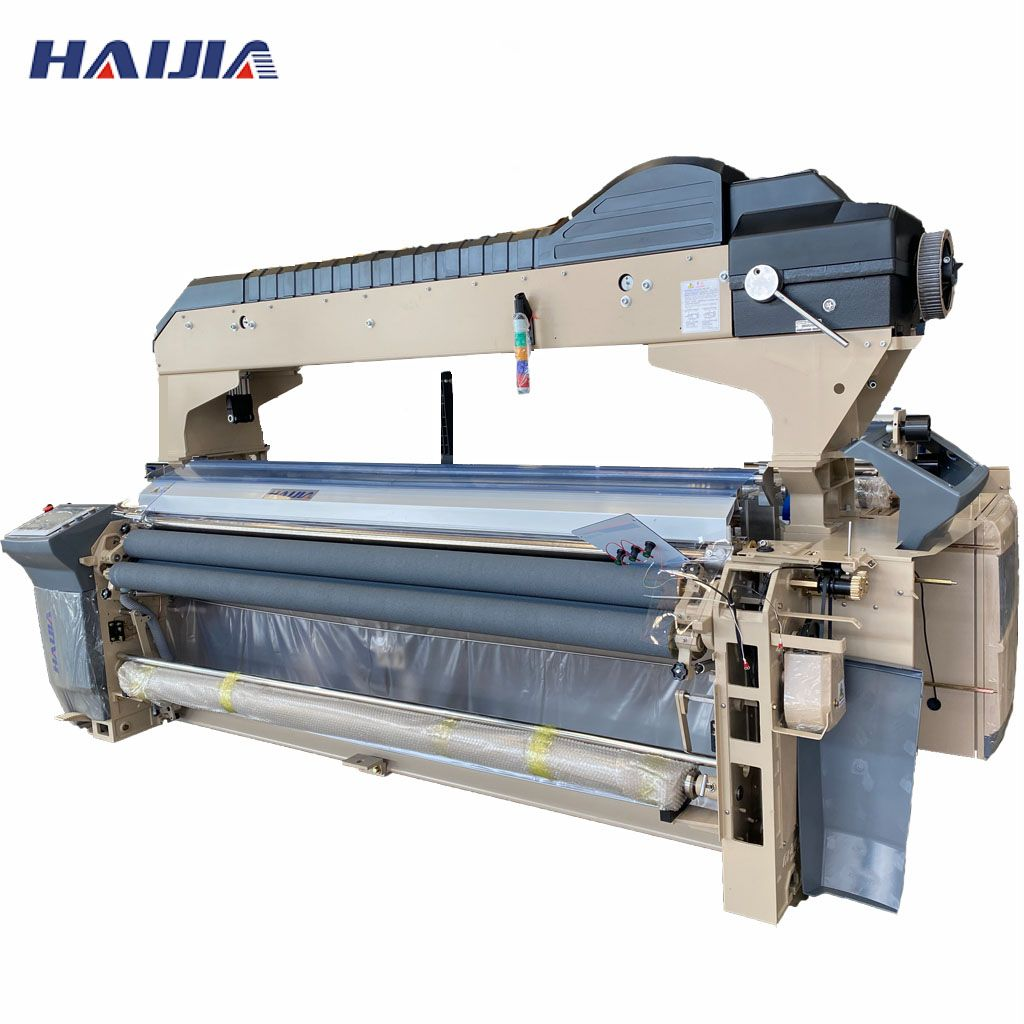

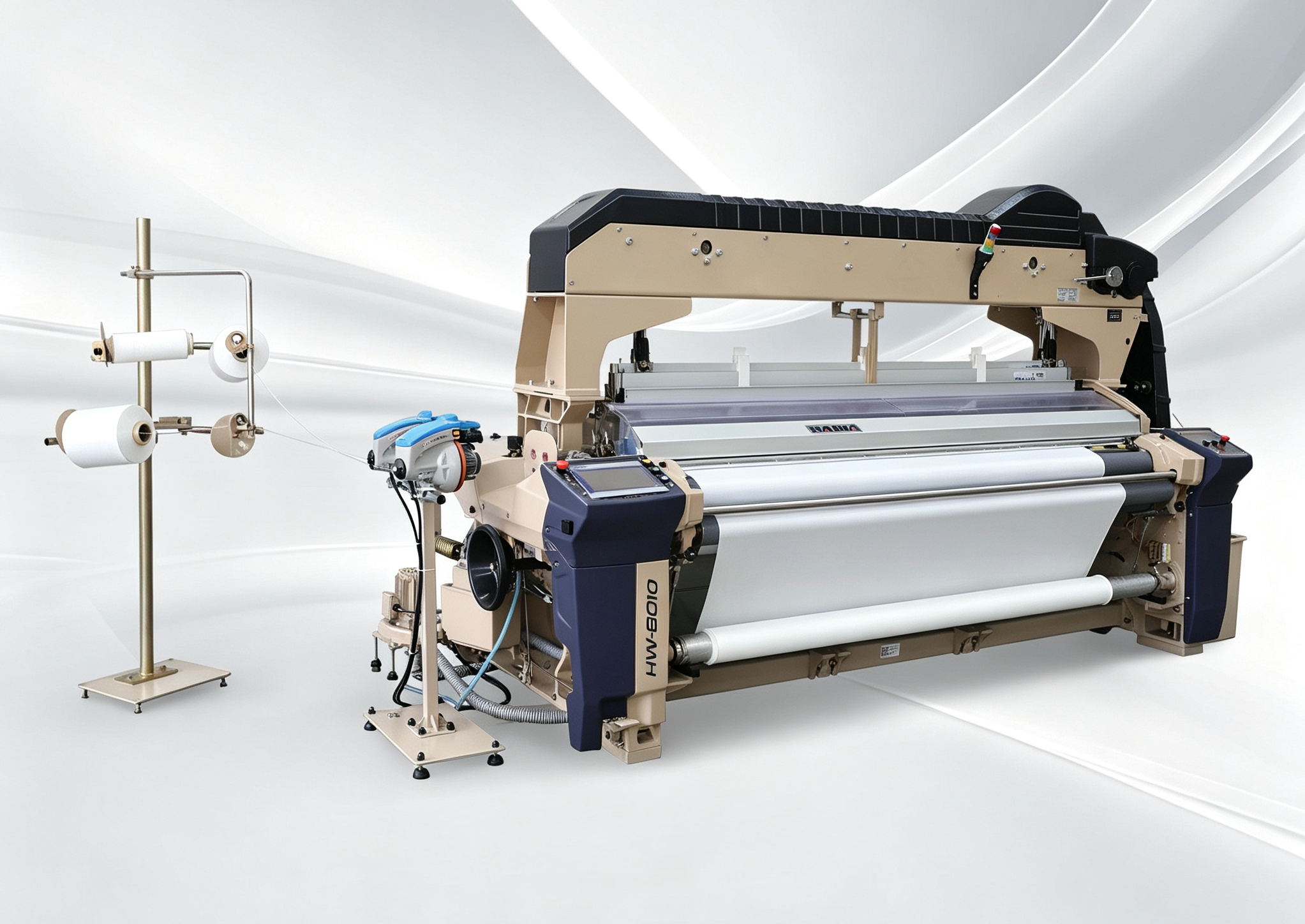

Hot Selling Water Jet Loom Products

◎ Machine Architecture
Special casting and processing technology one-piece large plate - more stable structure;
Cross-beam reinforcement support - weaving more stable.

◎ Weft Beating Mechanism
Special "U" type weft beating axis - even distribution of weft beating force;
Weft beating counterweight balance system--optimized weft beating dynamic range and weft beating angle to meet customers' various needs.

◎ Nozzle Part
Ordinary nozzle and "U" type nozzle can be chosen freely - to meet the needs of various weft yarns.

◎ Pump Part
High quality brass material, special forging process pump main body - efficient weft leading, saving water.

◎ Direct Drive Motor
Simple structure, less wearing parts - energy saving and environmental protection, can save 20% of electricity.

◎ Heald Frame
High quality aluminum alloy material, unique cross-section structure - to enhance the rigidity of the heald frame and extend the service life.

◎ Electronic Warp Feeding, Electronic Winding
Imported flexible processing line manufacturing box - accurate size;
Copper clad iron process worm gear - greatly enhance the service life.

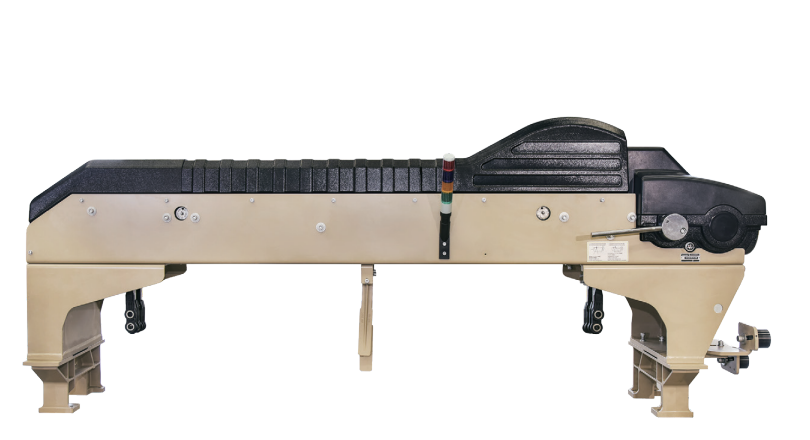

◎ Machine Architecture
It adopts a widened integrated main board structure, optimizes the fixing method of the let-off wall panel and the rear beam adjustment seat and cooperates with the new beam structure to further improve the rigidity of the whole machine, laying a solid physical foundation for ultra-high-speed operation and reducing the vibration of the loom.

◎ Six-Link Beat-Up
For heavy fabrics and wide-width looms, the six-link beat-up with large angle of repose can be preferred. It can ensure a larger flight angle and beat-up force without increasing the beat-up stroke and achieve the optimal operation speed and efficiency improve.
