Tel: +86-532-83130887 Email: eiffel@qdhaijia.net
| Quantity: | |
|---|---|

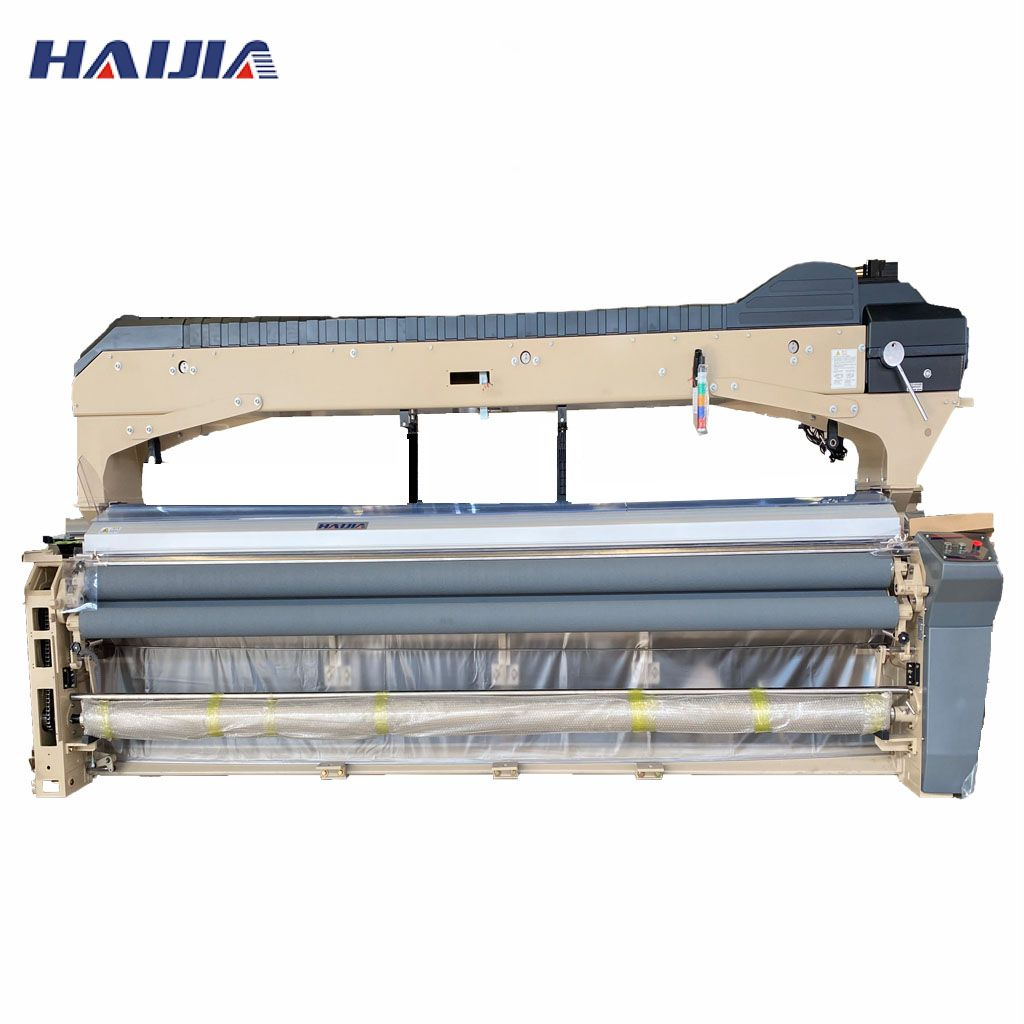

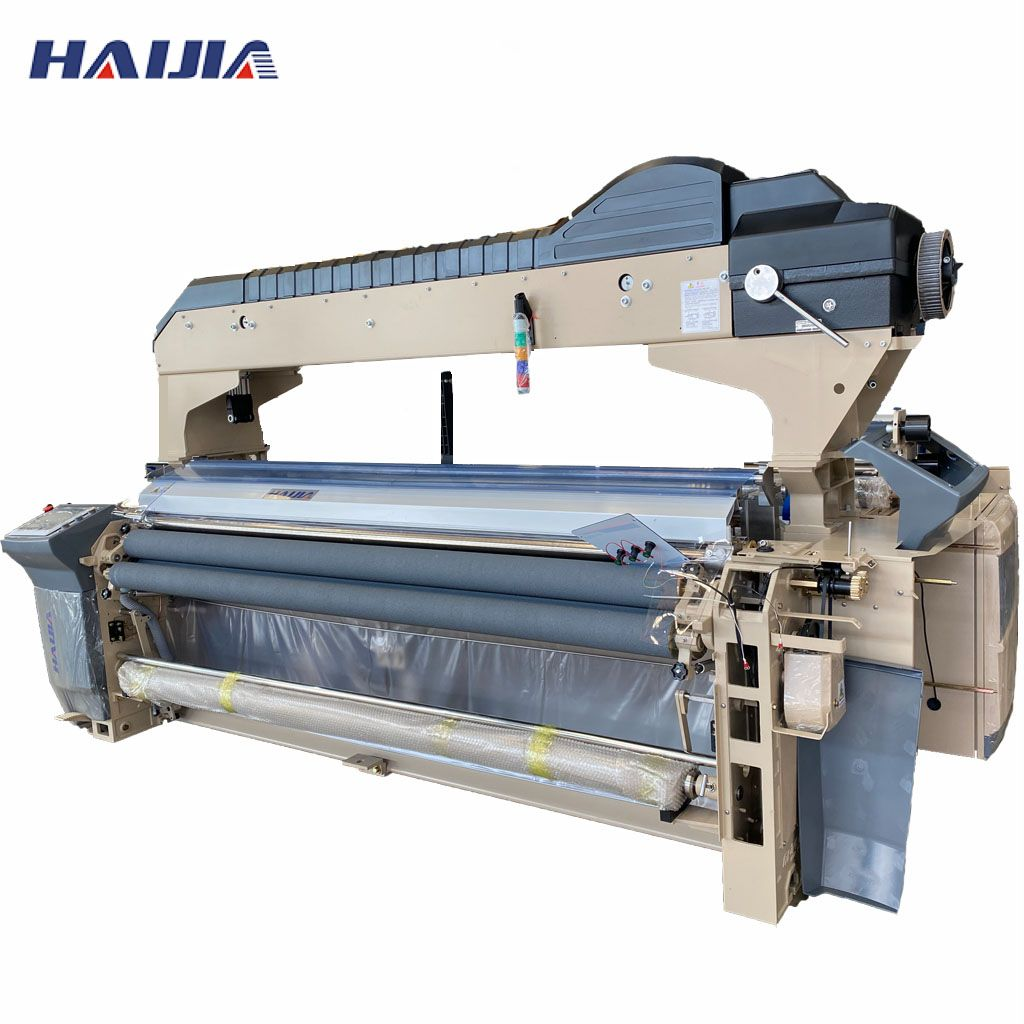

HW-6012
HAIJIA
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm) |
| 2 | Starting mode | Motorized spindle; Super start motor drive(Optional) |
| 3 | Motor capacity | 2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW |
| 4 | Running operation | One-hand operation button; Two-hand operation button(Optional) |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle, "U" shaped Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
The design of the frame structure, weft beating mechanism and opening device are optimized by using the integrated wall plate, and the high speed and stability of the loom are significantly improved compared with the original organic model.
The optimized design of weft guiding system improves the efficiency of weft guiding and adapts to high speed weft guiding.
The "U" type weft beating shaft and the special weft beating balance system are adopted, and the weft beating shaft adopts multiple reinforced support seats and centralized lubrication system to increase the weft beating force, improve the wear of the weft beating shaft and increase the service life of the loom.
Suitable for Twisted chiffon,Nylon taffeta,Spandex, Down jacket fabric，etc.
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm) |
| 2 | Starting mode | Motorized spindle; Super start motor drive(Optional) |
| 3 | Motor capacity | 2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW |
| 4 | Running operation | One-hand operation button; Two-hand operation button(Optional) |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle, "U" shaped Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
The design of the frame structure, weft beating mechanism and opening device are optimized by using the integrated wall plate, and the high speed and stability of the loom are significantly improved compared with the original organic model.
The optimized design of weft guiding system improves the efficiency of weft guiding and adapts to high speed weft guiding.
The "U" type weft beating shaft and the special weft beating balance system are adopted, and the weft beating shaft adopts multiple reinforced support seats and centralized lubrication system to increase the weft beating force, improve the wear of the weft beating shaft and increase the service life of the loom.
Suitable for Twisted chiffon,Nylon taffeta,Spandex, Down jacket fabric，etc.
