HW-001 Series Weaving Water Jet Loom Textile Machine Supplier China

Product Parameters

HW-001 series water jet weaving has been extensively strengthened in the fuselage;

Adapt to the weaving of most fabrics; such as Ultra-fine denier, ultra-high density blackout fabric, airbag fabric, etc.

It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1500RPM.

Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)

Product Description

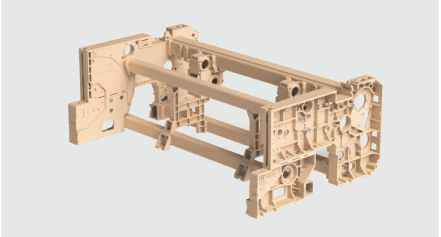

Water jet/Air jet compatible frame and transmission structure

Stronger Frame:

1. The front upper beam is made of large-section ultra-high-strength steel pipes, and the remaining three supports are large-section rectangular tube structures.
2. Multiple middle four-sided bracing structures firmly fix the four beams and the beating box together.
3. The upper wall board is an flexiable design without a gearbox structure, the lower wall board is a semi-open design without a gearbox structure (except for plan openings).

The above solid frame structure meets the needs of ultra-high-speed production of high-density and heavy-weight fabric weaving. lt has a solid structure and low vibration. The gearbox-less structure avoids high mainte-nance costs caused by water damage.

---

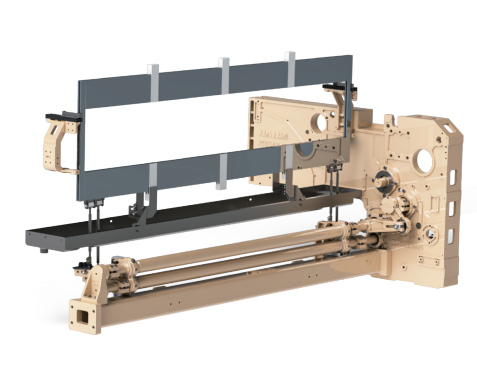

New plain opening structure

1. Single-sided drive structure, the two lifting and harness connecting rods are installed on both sides of the lower wall panel and away from the water tank, which reduces the damage caused by water intrusion of the bearing.
2. Each transmission connecting rod, support shaft, heald lifting rod, connecting pinand bushing are redesigned to have higher strength and more wear resistance. Each transmission bearing model is enlarged and has greater bearing capacity.
3. The crank shedding machine transmission gear is ultra-precision processed, morewear-resistant, precise gear meshing, and low noise.
4. The bearings and bushings of all driving parts of the heald frame can achieve centralized and regular lubrication.
The above design ensures the long life of the plain opening part under ultra-high-speed operation.

---

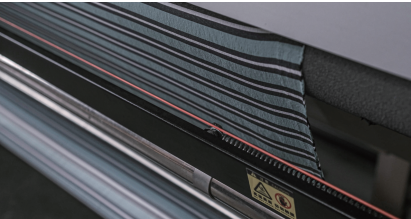

Automatic cloth dropping system

Fully automatic cloth dropping system, the loom control system issues instructions according to the set fabric length. After the loom receives the cloth dropping signal, it automatically cuts the cloth and releases the cloth roller, which is then transported to the warehouse by AGV.

---

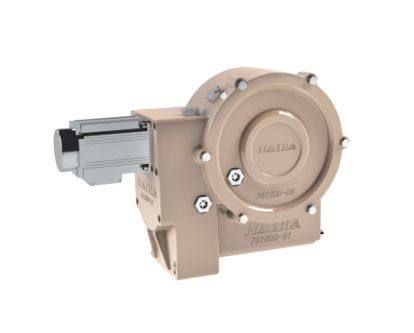

New type of let off box

1. The newly designed turbine box,turbines and scroll rods are precision made of high-strength and wear-resistant alloy steel to ensure the precision of transmission.
2. Each bearing on the turbine gear is lubricated by oil bath.
3. Helical gear transmission is used in the transmission gear box to increase the bearing capacity, is more suitable for high-speed operation and is more wear-resistant
.4. The bearing models in the box are enlarged and the bearing capacity is doubled.The above structural improvements enable the let-off box to have a longer service life, higher load-bearing capacity and higher transmission accuracy.

---

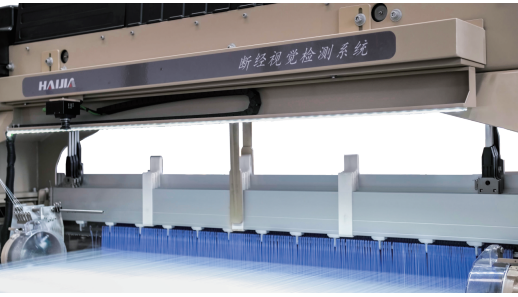

Warp yarn breakage visualinspection system

The camera automatically patrols and detects, and when a warp break is detected, it promptly sends a stop signal to the loom. After the loom stops, the loom operator is quickly called to eliminate the problem, effectively shortening the warp break repair time, greatly reducing the generation of defective fabrics, and reducing the labor intensity of the loom operator's patrol inspection.

---

Maintenance-free

1.The main transmission structure, let-off box, take-up box and leno selvage gear structure are all lubricated by oil bath and the oil change machine is used to quickly change the lubricating oil, which has high maintenance efficiency, extends the oil change cycle and is maintenancefree during the cycle, the secondary transmission. The structure adopts automatic centralized lubrication, eliminating manual maintenance.
2.Modular transmission structure makes replacement and maintenance of parts simple, efficient and low-cost.

---

Company Introduction

        HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.

Packaging&Shipping

Our Exhibition

FAQ

About water jet loom

Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.

Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.

Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.

Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.

Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.

About Haijia

Question:How long has your company been making machines?
Answer:Since its establishment in 1995, Haijia has been focusing on the R&D and manufacturing of water jet looms and air jet looms for 30 years, delivering 180,000 machines to 30 countries and regions worldwide, with a market share ranking first in the industry for ten consecutive years.

Question:How long is haijia machine's service life?
Answer:Haijia Looms are manufactured using the industry's top processing equipment and has the industry's most advanced electrophoretic spraying process. The machine's anti-corrosion and rust prevention capabilities have been greatly improved, and its service life is 2-3 times longer than that of other brands. Currently, the date of production of the operating machine on the market can be traced back to 2010.

Question:How long is the warranty of machine?
Answer:The industry standard warranty period is one year, and the warranty time of export machine will be appropriately extended for 2-3 months based on the voyage time.
