HW-3873
HAIJIA
Product Parameters
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm) |
| 2 | Starting mode | Motorized spindle; Super start motor drive(Optional) |
| 3 | Motor capacity | 2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW |
| 4 | Running operation | One-hand operation button; Two-hand operation button(Optional) |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle, "U" shaped Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |
Weaving machinery/HW-3873 Series Water Jet Loom
HW-3873 series water jet weaving has been extensively strengthened in the fuselage;
Adapt to the weaving of most fabrics; such as interlining, taffeta, umbrella cloth, bag cloth, etc.
It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1000RPM.
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
The whole machine is made of 880cm*880cm*140cm large plate, which lowers the center of gravity of the machine and ensures that the machine can run smoothly at high speed.
The weft beating system with hollow weft beating shaft and multi-stroke (optional), the optimized design of the winding mechanism, the reinforced center plate and the rear upper beam reduce the vibration of the weaving machine, and the reed protection cam is moved outward to improve the waterproof effect of the machine.
The width of the machine can reach up to 360cm, which is widely used in the weaving of light fabrics such as interlining, taffeta, umbrella fabric and luggage fabric.
Water jet loom machines can reach high speeds, such as up to 1,500 picks per minute, and have a high filling insertion rate, which can reach 2,360 yards per minute, improving production efficiency.
They can produce fabrics with good appearance and feel, and the fabrics have uniform quality. The water jet has less abrasion to the warp yarns, causing minimal damage during the weaving process and reducing the occurrence of defects.
Compared with some other types of looms, water jet looms consume less energy, which helps reduce production costs and is more environmentally friendly.

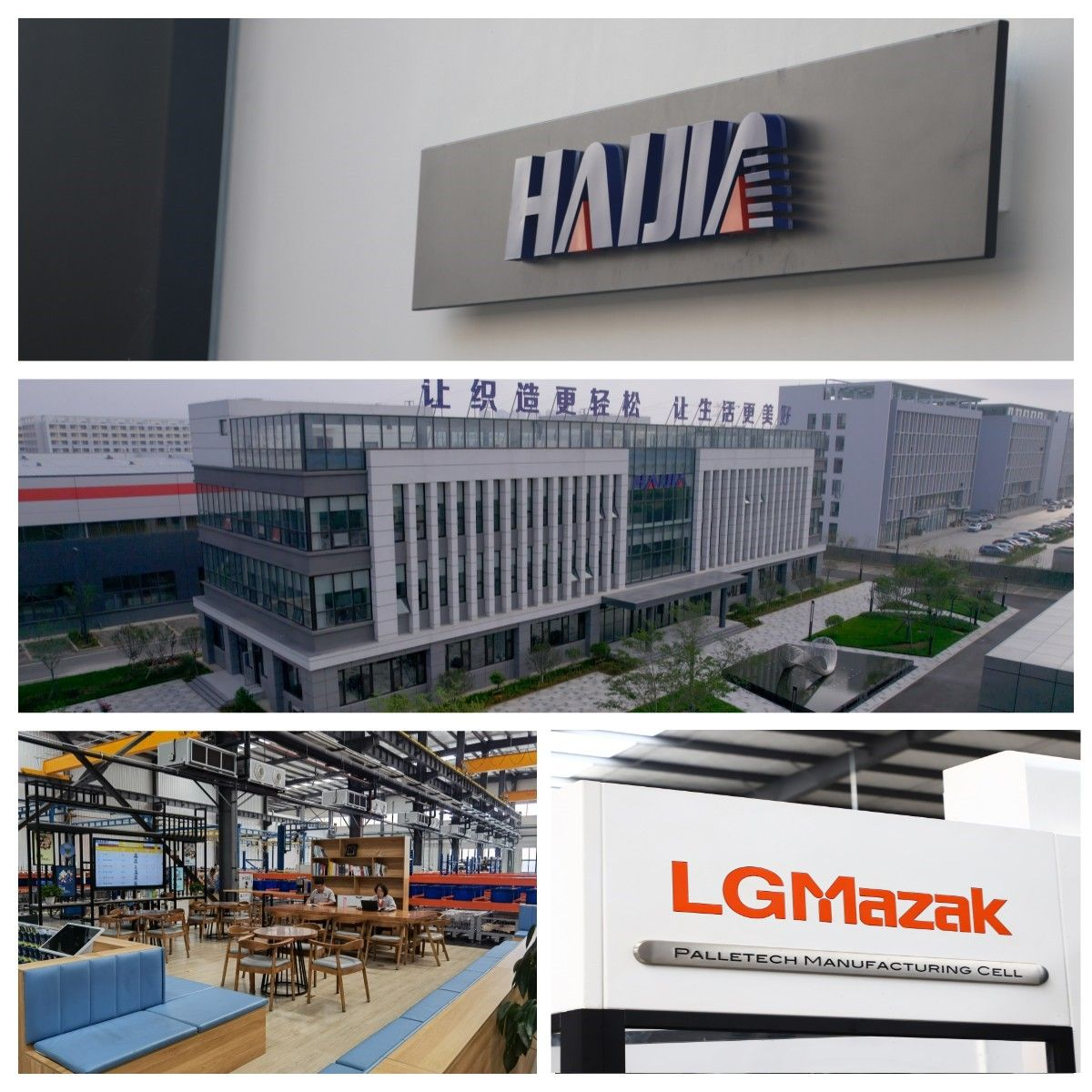

HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.
Shipping&Packaging
FAQ
About water jet loom
Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.
Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.
Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.
Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.
Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.
About air jet loom
Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 9020 model is designed to rotate at a maximum speed of 1400 rpm, but it may vary slightly depending on the fabric type.
Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 3.7kw and 4.5kw. The wider the loom, the greater the main motor power. Users can choose to install a motorized spindle, which saves 20% to 25% more power than ordinary asynchronous motors.
Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.
