HA-N air jet loom
Haijia
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm) |
| 2 | Starting mode | Motorized spindle; Super start motor drive(Optional) |
| 3 | Motor capacity | 2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW |
| 4 | Running operation | One-hand operation button; Two-hand operation button(Optional) |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle, "U" shaped Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |

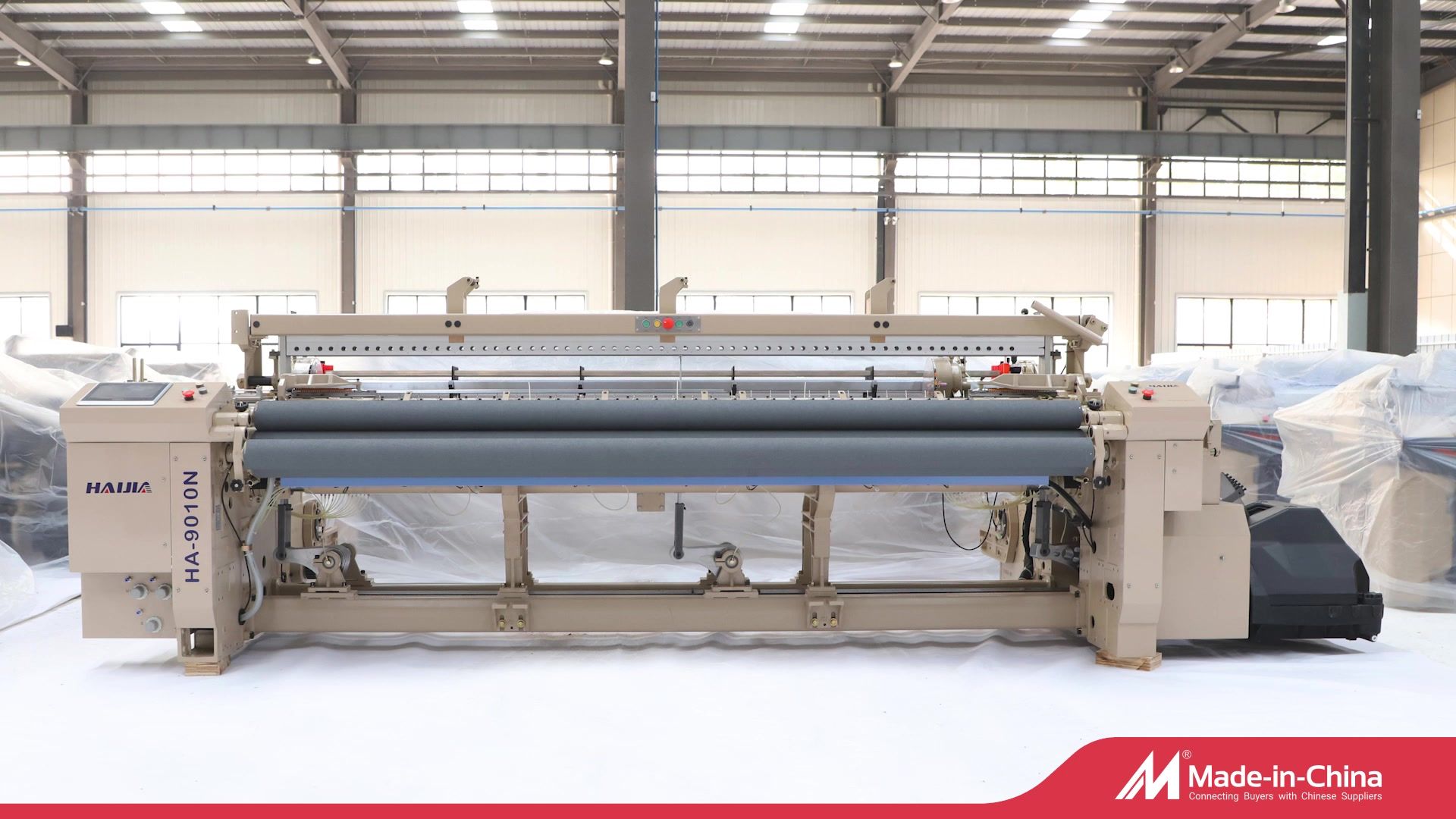

Haijia Textile Machine / HA-9010N Series Air Jet Loom
HA-9010N series air jet weaving has been extensively strengthened in the fuselage;
Adapt to the weaving of most fabrics; such as air jet cotton fabric, viscose, and textiles for home applications , etc.
It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1200RPM.
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
Applicable yarn type and thickness:
staple fiber 100~5S/1 (imperial cotton count) (Nm170-8.5); filament 50-900D (denier) (55.6~1000dtex)
Applicable fabric types:
base cloth, cold cloth, gauze, core cloth, fine flat cloth, labor cloth, down quilt top, cotton flannel, corduroy, wada tweed, rainproof canvas, coat fabric, poplin, striped color cloth, Oxford cloth, gingham twill cotton fabric, pile fabric, bed sheet cloth, thin fabric, thin outerwear fabric, pure wool fabric, facecloth, cotton and linen blended shirt fabric, towel, linen base cloth, lining fabric, women's clothing fabric, curtain fabric, sportswear fabric, shirting fabric, uniform fabric.
