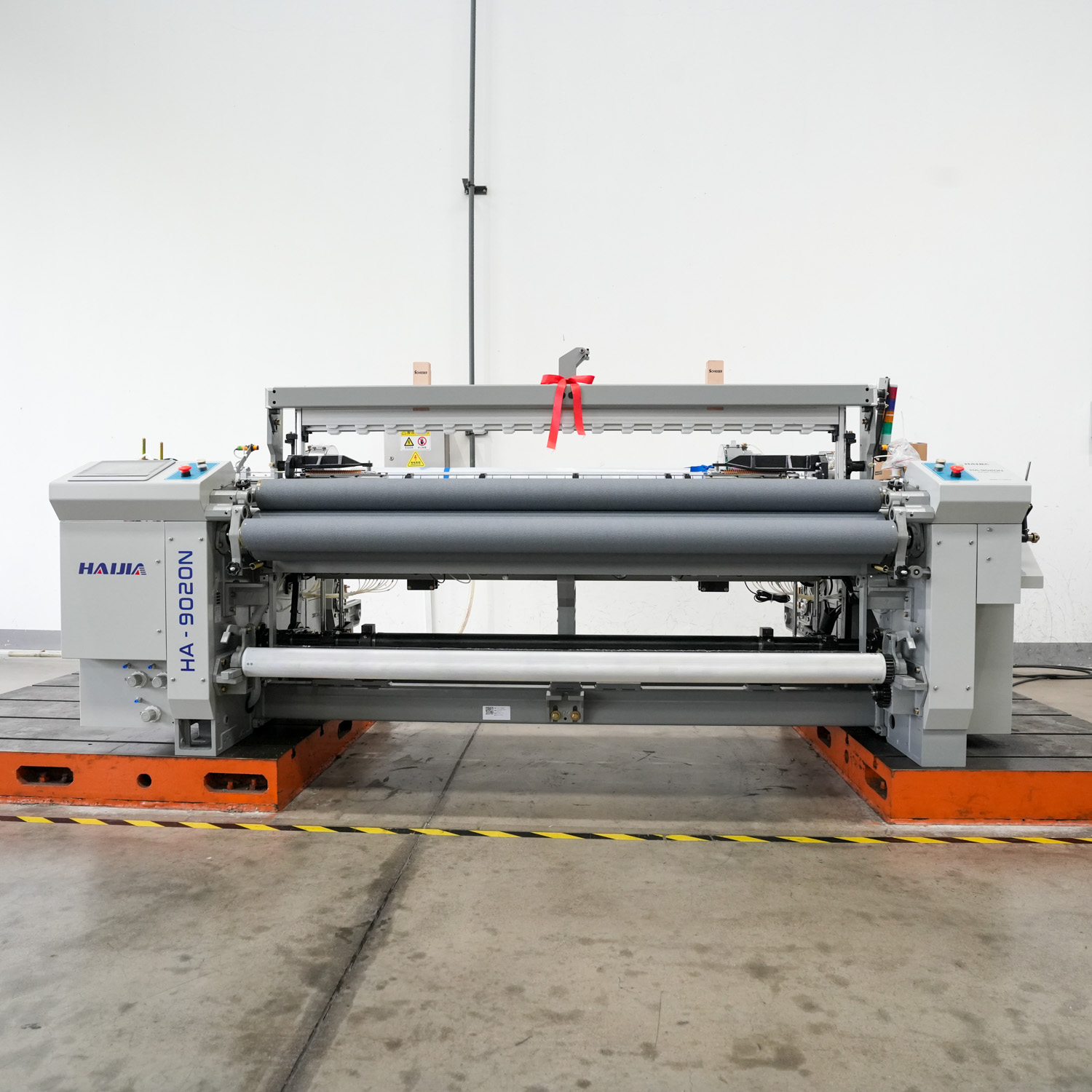

High Quality HA-9020N Weaving Textile Machine Air Jet Power Loom

Product Parameters

                    Haijia Textile Weaving Machine HA-9020 Series Air Jet Loom

Product Description

Machine architecture

It adopts a widened integrated main board structure, optimizes the fixing method of the let-off wall board and the rear beam adjustment seat and cooperates with the new beam structure to further improve the rigidity of the whole machine, laying a solid physical foundation for ultra-high-speed operation and reducing the vibration of the loom.

Four-link/six-link beating-up

Based on the previous generation of machinery, a new high-speed four-link beating-up mechanism is optimized and designed to meet the needs ofhigh-speed beating-up; for heavy fabrics and wide looms, a six-link beating-up with a large static angle can be selected to ensure a larger flight angle and beating-up force

Solid beat-up shaft

The specially processed straight shaft and the flexibly increase or decrease counterweight device can achieve balanced beating of the loom under high-speed operation conditions and reduce the vibration of the loom.

Energy saving auxiliary main nozzle

The new generation of energy-saving auxiliary main nozzles and energy-saving auxiliary nozzles can achieve efficient weft insertion at lower air pressure, providing strong support for further energy saving and consumption reduction.

The direct drive motor part

It adopts a direct drive motor, which can automatically adjust the speed, effectively save power, and eliminates wearing parts such as the main motor belt, reducing the maintenance workload.

Company Profile

    HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.

Packaging&Shipping

Exhibition Show

FAQ

Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 9020 model is designed to rotate at a maximum speed of 1400 rpm, but it may vary slightly depending on the fabric type.

Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 3.7kw and 4.5kw. The wider the loom, the greater the main motor power. Users can choose to install a motorized spindle, which saves 20% to 25% more power than ordinary asynchronous motors.

Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.

About Haijia

Question:How long has your company been making machines?
Answer:Since its establishment in 1995, Haijia has been focusing on the R&D and manufacturing of water jet looms and air jet looms for 30 years, delivering 180,000 machines to 30 countries and regions worldwide, with a market share ranking first in the industry for ten consecutive years.

Question:How long is haijia machine's service life?
Answer:Haijia Looms are manufactured using the industry's top processing equipment and has the industry's most advanced electrophoretic spraying process. The machine's anti-corrosion and rust prevention capabilities have been greatly improved, and its service life is 2-3 times longer than that of other brands. Currently, the date of production of the operating machine on the market can be traced back to 2010.

Question:How long is the warranty of machine?
Answer:The industry standard warranty period is one year, and the warranty time of export machine will be appropriately extended for 2-3 months based on the voyage time.

Question:How is the after-sales service?
Answer:At present, Haijia has 30 after-sales service staff. We have set up five service centers in the world, including India, Pakistan, Vietnam, Turkey and Indonesia. You can choose the nearest service center for help. We can provide 24-hour service for any problem with the machine.

Question:Is there any discount?
Answer:The top three textile head enterprises in each country are using Haijia brand looms. In order to facilitate a better development of the market, we will provide the top two users of each new market with the maximum discounts. Looking forward to working with you.
