Product Parameters
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---60cm(170~230cm); 0---80cm(≥280cm) |
2
| Weaving Range | Spun:Ne100~Ne 2.5; Filament:22dtex~1350dtex |
| 3 | Motor capacity | 2.2KW(Crank), 3.0KW(Cam), 3.7KW(Dobby), 6.5KW(Jacquard Shedding) |
| 4 | Running operation | Two-hand operation of control buttons |
| 5 | Reed | Profiled Reed |
| 6 | Nozzle | Auxiliary main nozzle; Drafting nozzle(Optional) |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | Up to 10pcs heald frame |

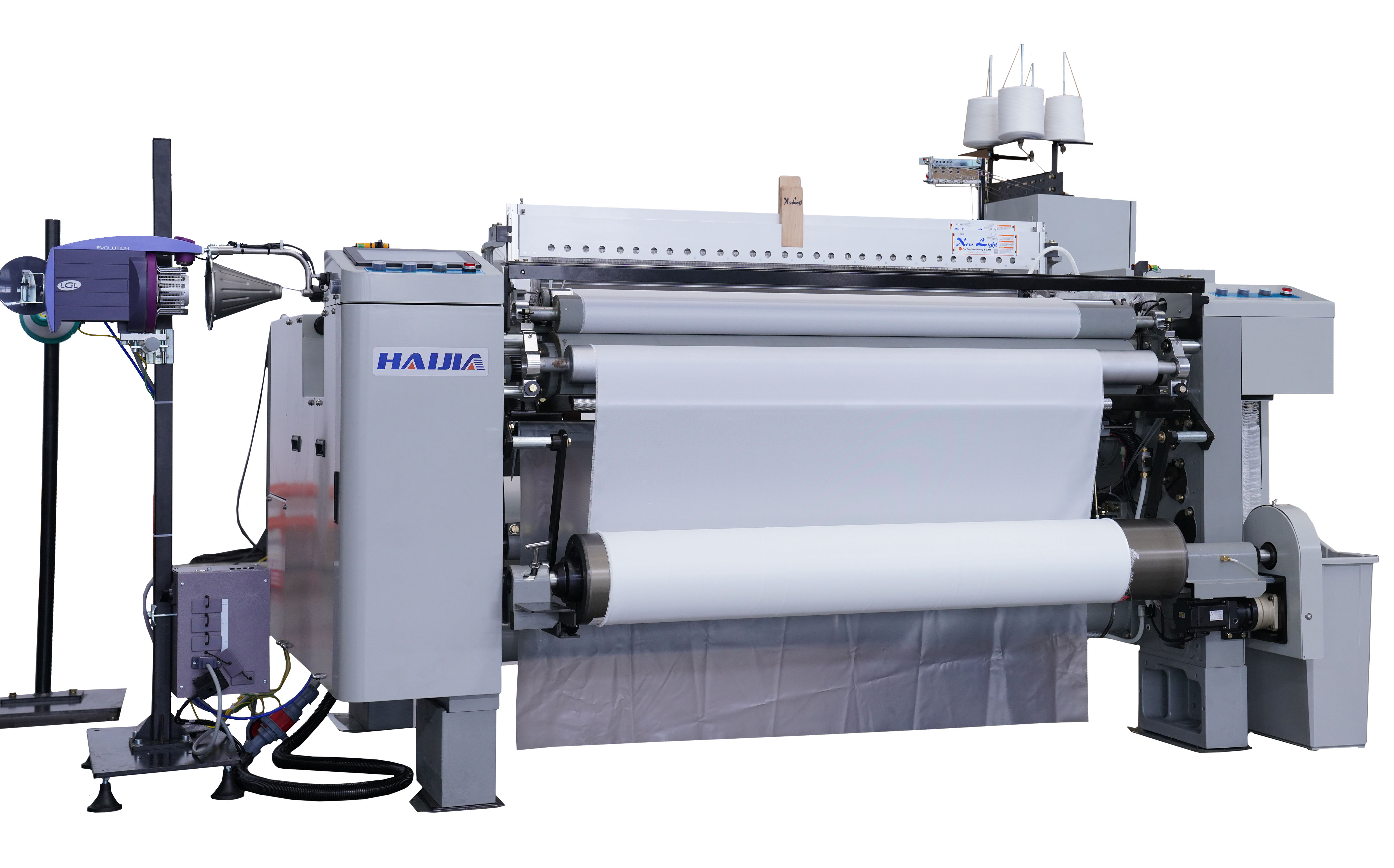

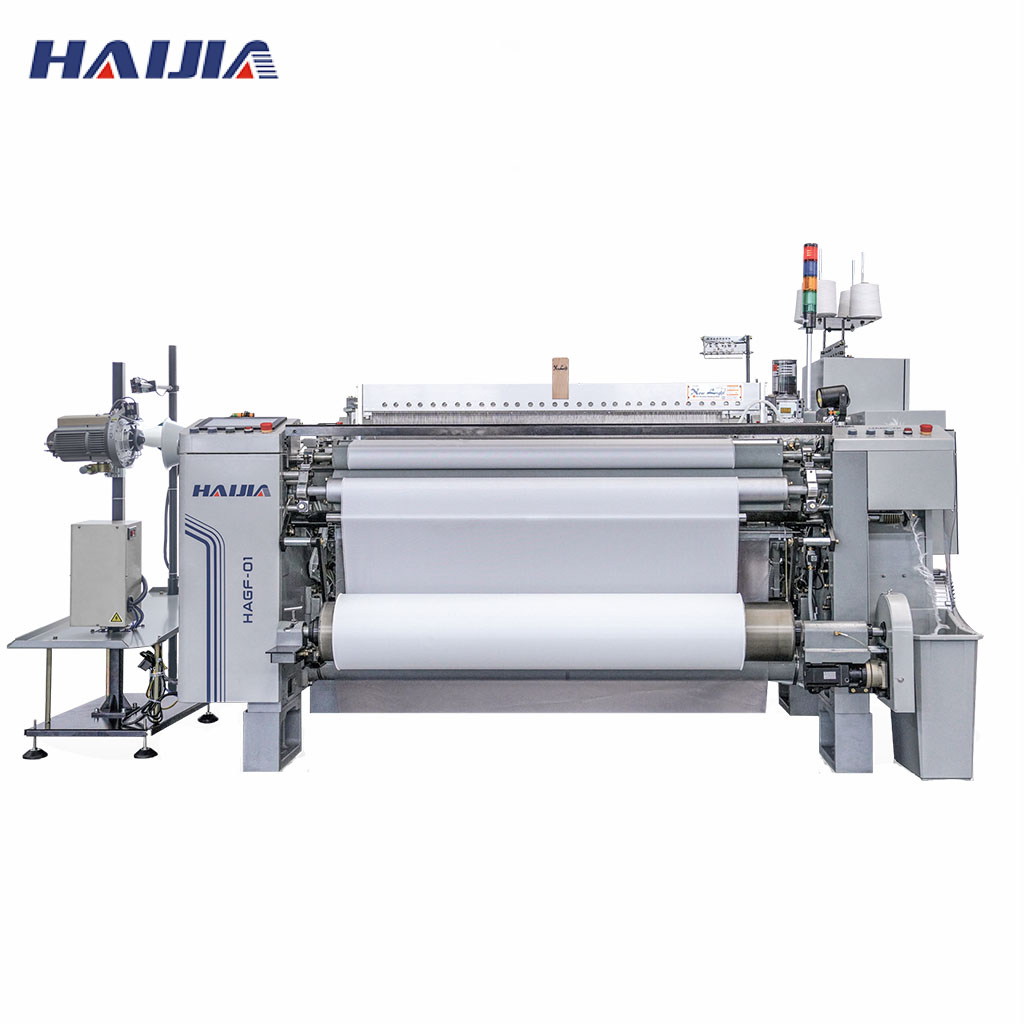

Haijia HAGF-01 Fiberglass Air Jet Loom Weaving Machine
HAGF-01 Fiberglass Air Jet weaving has been extensively strengthened in the fuselage;
Adapt to the weaving of most fabrics; including lightweight fabrics (106), standard-weight fabrics (1080) and heavy-weight fabrics (7638, 7628, 2116). It cuts redundant equipment investment and allows flexible switching among multiple production orders.
It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 800RPM.
![玻纤证件照]( "玻纤证件照")
Product Description
![Low-Vibration Rigid Reinforced Frame]( "Low-Vibration Rigid Reinforced Frame")
Low-Vibration Rigid Reinforced Frame
The reinforced integrated side-plate structure, paired with the newly-designed crossbeam, boosts the overall rigidity of the machine frame. Additional support and damping structures fitted at the frame middle section effectively suppress vibration and deliver more stable weaving conditions for electronic-grade fabrics.
![Dedicated Balanced Beating-up Mechanism]( "Dedicated Balanced Beating-up Mechanism")
Dedicated Balanced Beating-up Mechanism
The newly optimized beating-up structure dedicated for fiberglass weaving delivers balanced and consistent beating force. Tailored for the rigorous operating conditions of fiberglass weaving, it minimizes damage to fiberglass yarns and improves finished quality of electronic-grade fabrics.
![Dual Back Rest Electronic Let-off]( "Dual Back Rest Electronic Let-off")
Dual Back Rest Electronic Let-off
It adopts a dual back-rest tension-buffer design with independent servo drives, delivering real-time dynamic warp-tension compensation for highly precise warp tension control.
![Universal Warp Beam]( "Universal Warp Beam")
Universal Warp Beam
The warp-beam interface complies with Japanese looms tandards. Existing Japanese-spec fiberglass warp beams can be used directly with no modification required, effectively cutting extra investment and shortening production-line commissioning time.
![Low-Angle Grazing Inspection Light]( "Low-Angle Grazing Inspection Light")

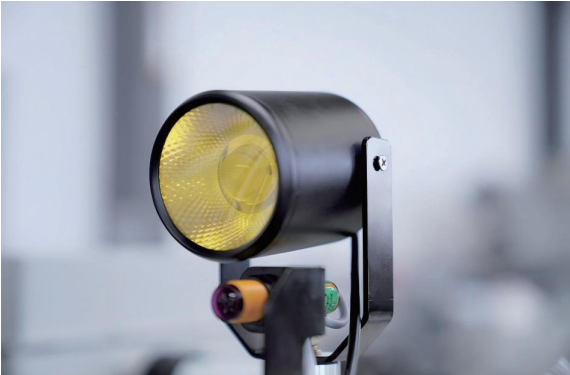

Low-Angle Grazing Inspection Light
A low-angle grazing inspection light comes as standard.Light beams sweep across the fabric surface at a shallow angle to boost shadow contrast for subtle defects. It enables direct visual detection of micro-defects on fiberglass fabrics including fuzz, broken filaments, loose picks, thin bars and dense bars. Quality problems can be spotted at an early stage, cutting downgrade losses during downstream inspection.
![Intelligent Pressure Regulation System]( "Intelligent Pressure Regulation System")
Intelligent Pressure Regulation System
The automatic pressure-regulation package adjusts air pressure for main and auxiliary nozzles in real time according to weft-yarn thickness and weft arrival timing, greatly lowering air consumption. Meanwhile, the optimized layout of auxiliary-nozzle spacing reduces jet-stream loss, achieving stable low-pressure weft insertion and mitigating the risk of fiberglass weft-yarn breakage.
Company Profile
HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.
![d06c1a9d6a08e9835acfd41a2463a1e]( "d06c1a9d6a08e9835acfd41a2463a1e")
![详情页]( "详情页")
Packaging&Shipping
![6 (2)]( "6 (2)")
Exhibition Show
![2e1e2dc7b3fc160193014f5b42a9a2af]( "2e1e2dc7b3fc160193014f5b42a9a2af")
FAQ
Question:What types of electronic fabric can be woven?
Answer:One single machine platform coversthe fullproductportfolio with no requirement for core-componentreplacement. Via fine-tuning of parameters andcomponents, it enables stable mass production ofmainstream electronic fabric grades, includinglightweight fabrics (106), standard-weight fabrics1080) and heavy-weight fabrics (7638, 7628, 2116). Itcuts redundant equipment investment and allowsflexible switching among multiple production orders.
Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.
Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. For 2116 fabric, Our model is designed to rotate at a maximum speed of 800rpm, but it may vary slightly depending on the fabric type.
