High Quality HW-3883 Water Jet Weaving Loom with Double Nozzles

Produt Parameters

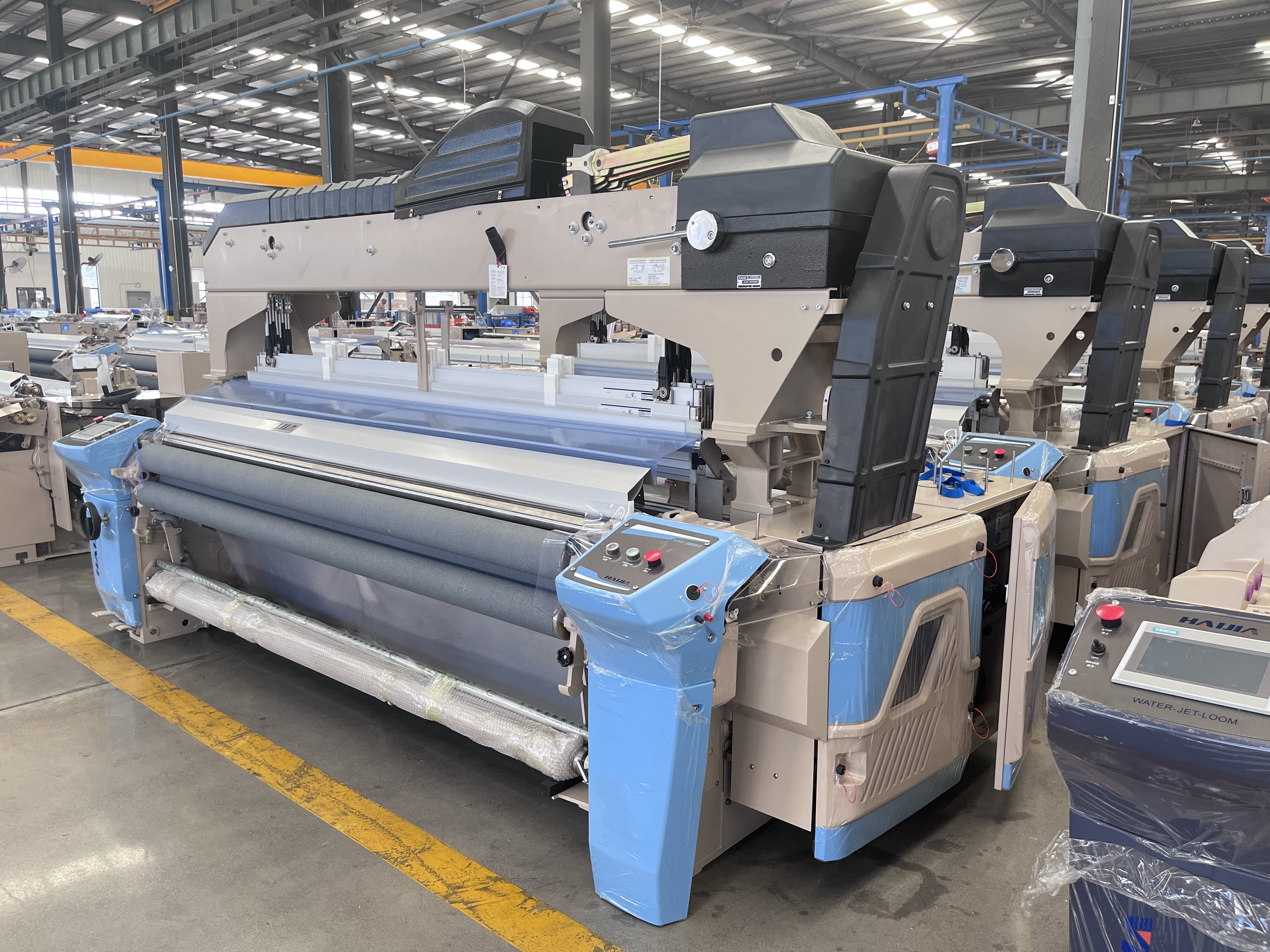

                    HW-3883 Water Jet Power Loom Weaving Machine

HW-3883 series water jet weaving has been extensively strengthened in the fuselage;

Adapt to the weaving of most fabrics; such as interlining, taffeta, umbrella cloth, bag cloth, etc.

It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1000RPM.

Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)

Product Description

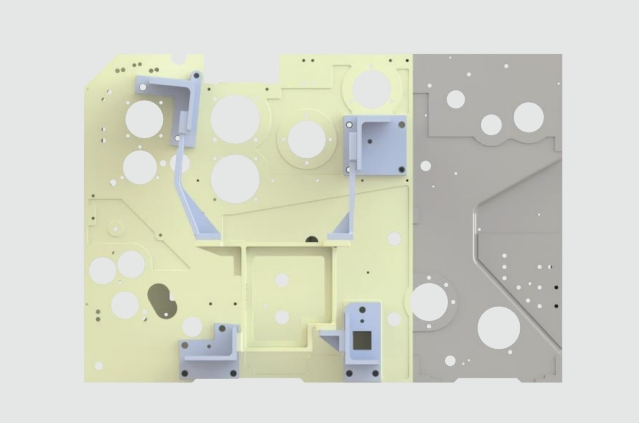

Machine architecture

The wall panel adopts a split structure, and the reinforcement design of the middle panel is optimized. The overall center of gravity is lowered and the beat-up is more stable. The rear upper beam can be equipped with an optional pentagonal tube structure, which is more suitable for the weaving of light fabrics.

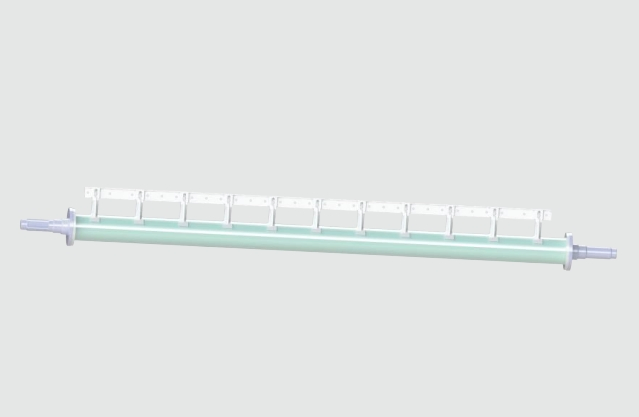

Hollow beat-up shaft

It adopts a hollow beat-up shaft and can be equipped with 114 and 159 hollow tubes according to the width and fabric. The bearings on both sides can be equipped with double bearings to better decompose the radial force generated by the beat-up and ensure the high-speed and smooth operation of the loom.

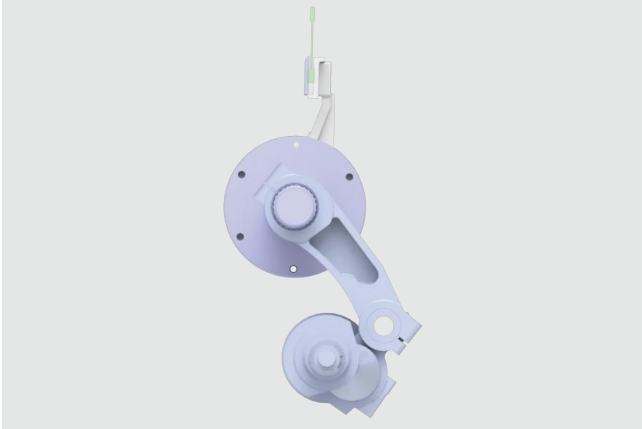

Four-link beat-up

On the original basis, the beating motion is optimized and designed. The beating motion covers from 190 reed width to 360 reed width, adapting to the diversity of varieties.

Rotating suction pipe (optional)

The suction pipe can be equipped with a rotating structure to reduce the friction between the fabric and the suction pipe, and at the same time reduce the distance between the dead center of the reed and the heald frame,thereby achieving a small beating motion and a largeo pening, and better meeting the needs of interlining weaving.

Company Profile

  HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.

Packaging&Shipping

Our Advantages

FAQ

About water jet loom

Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.

Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.

Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.

Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.

Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.
