HW-5008
HAIJIA
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---50cm(≤230cm); 0---70cm(≥280cm) |
| 2 | Starting mode | Super start motor drive; Direct driver motor(Optional) |
| 3 | Motor capacity | 2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW |
| 4 | Running operation | One-hand operation button; Two-hand operation button(Optional) |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |

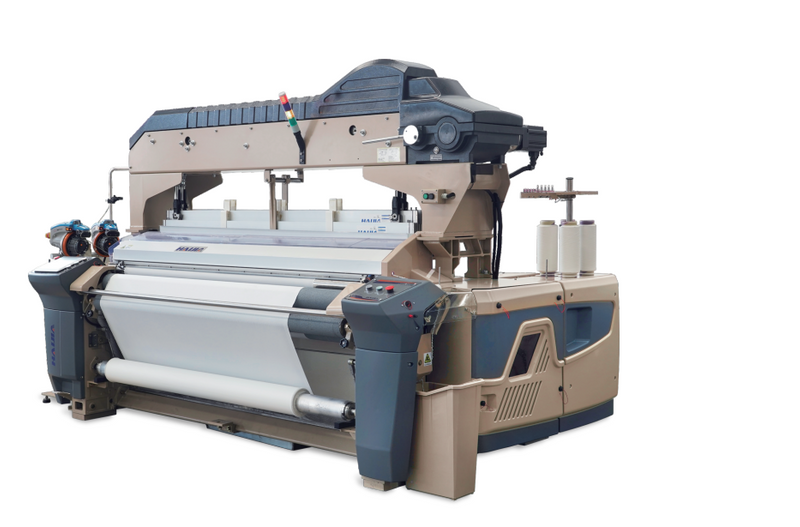

HW-5008 Series Water Jet Loom Weaving Machine
HW-5008 series water jet weaving has been extensively strengthened in the fuselage;
Adapt to the weaving of most fabrics; such as interlining, taffeta, umbrella cloth, bag cloth, etc.
It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1000RPM.
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
CNC Workshop
The company is equipped with advanced CNC equipment, high-precision imported processing center, and adopts information management methods to achieve independent precision machining of precision parts of key parts of the loom.
The processing accuracy of key parts and components reaches 0.01mm, greatly improving the whole machine Stability and startup efficiency.
Spray Workshop
The spraying workshop adopts the fully-automatic coating production line and spraying robot independently developed by the company, and uses the same electrophoretic coating process as car that of automobile production to ensure that the inner and outer surfaces of complex workpieces are even and smooth, which greatly improves the corrosion resistance of the workpieces.
Environmentally friendly surface treatment, electrophoretic coating, topcoating process, and coating film drying process are all automated to improve the quality of the workpiece coating, have the same salt spray resistance as the car, and the appearance is more excellent.
Improve the corrosion resistance of the inner cavity of the workpiece, strong adhesion, long anti-rust time.
Assembly shop
The company adopts the whole machine assembly line, through strict quality management, finely differentiates the assembly process flow, uses special tools to fix the torque to fasten the connectors, and optimizes the quality control of the product through the technology of the entire assembly line.
Cost-effectiveness and quality have strict requirements, ensuring the quality of the whole organization.
Quality Control Workshop
The use of advanced inspection and testing equipment to ensure the pass rate of production products in each process, strictly control the quality fluctuations, so as to ensure the product quality of the whole machine.
Improve product production process through inspection, reduce quality cost and enhance product comprehensive competitiveness
FAQ
About water jet loom
Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.
Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.
Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.
Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.
Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.
About air jet loom
Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 9020 model is designed to rotate at a maximum speed of 1400 rpm, but it may vary slightly depending on the fabric type.
Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 3.7kw and 4.5kw. The wider the loom, the greater the main motor power. Users can choose to install a motorized spindle, which saves 20% to 25% more power than ordinary asynchronous motors.
Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.
