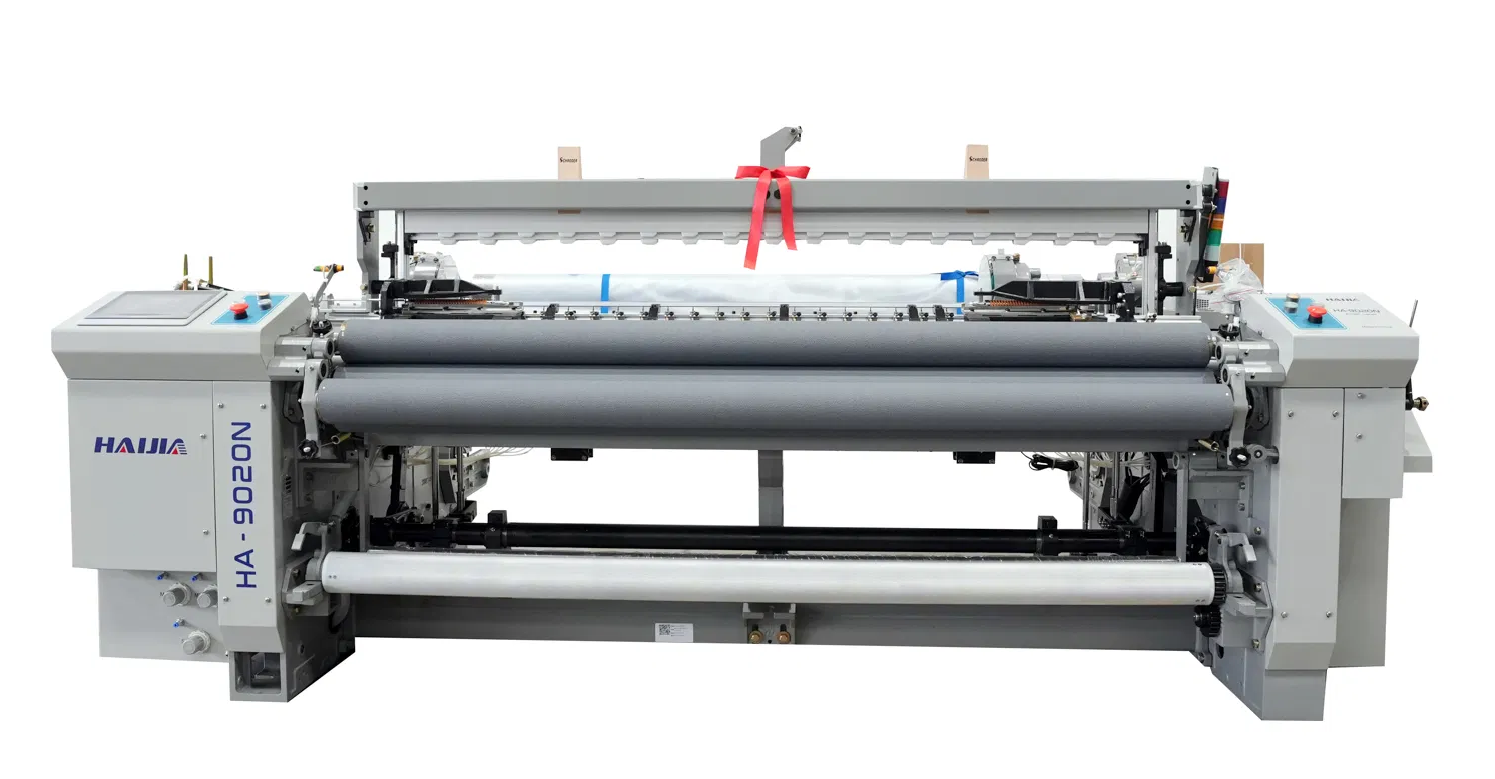

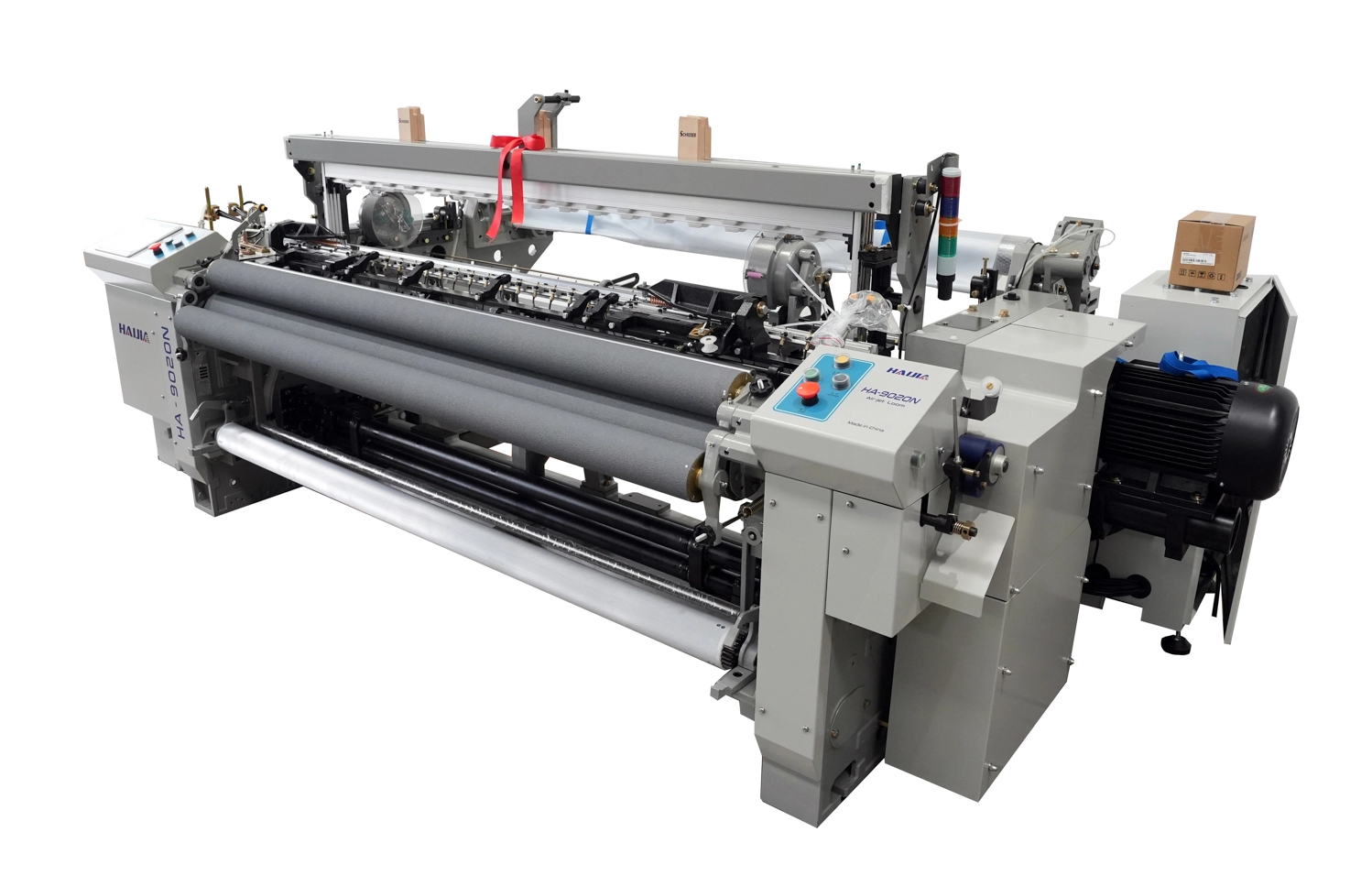

HA-9020N
Haijia
High speed and high efficiency
The new structural wall panels are equipped with four reinforced beams to build a strong and stable body,laying a solid foundation for the high-speed and efficient operation of the loom.
Variety adaptability
The continuous optimization and personalized design of the weft insertion system, beat-up system and shed-ding system can meet the needs of stable and high-quality weaving of various fabrics.
Quality stability
From materials to casting from processing to surface treatment, from installation to debugging, full-process quality control and information management ensure that the quality of each batch of machines is stable and reliable.
Excellent energy saving
Adopt new energy-saving nozzles, optimize the weft insertion air path, optimize the distance between the electromagnetic valve and the nozzle and further reduce air consumption.
The use of a new direct-drive motor also greatly reduces the energy consumption of the loom.
| NO. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---60cm(170~230cm); 0---80cm(≥280cm) |
| 2 | Starting mode | Motorized spindle; Super start motor drive(Optional) |
| 3 | Motor capacity | 2.2KW, 3.0KW, 3.7KW, 6.5KW |
| 4 | Running operation | Two-hand operation of control buttons |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle, "U" shaped Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |
