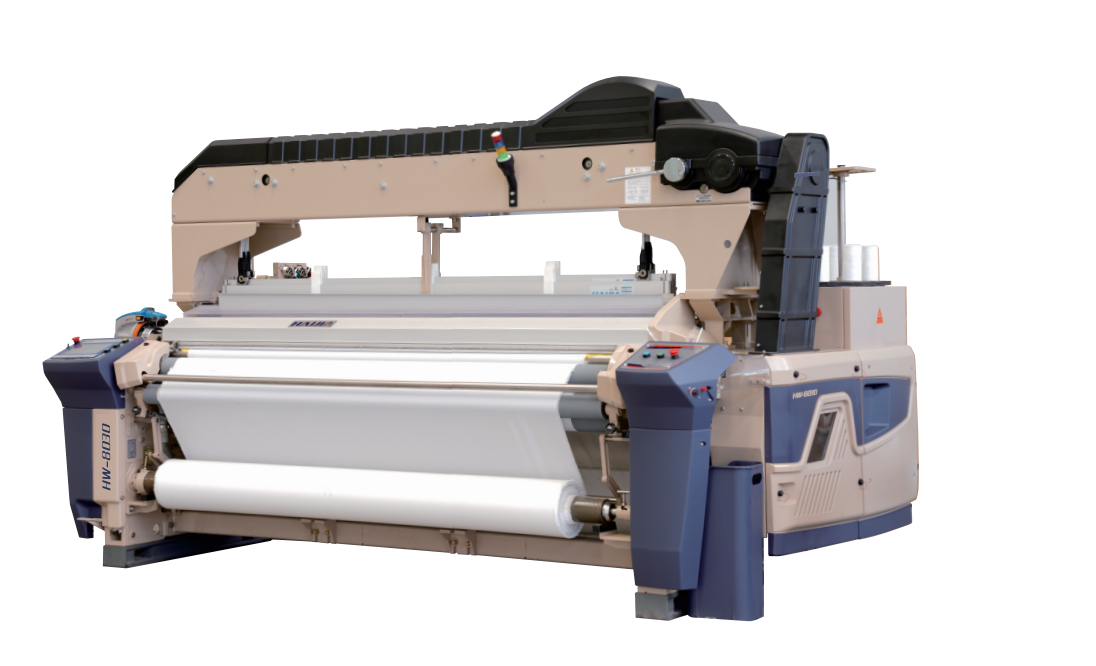

High Speed HW-8030 Water Jet Loom Weaving Textile Machine

Product Parameters

                  HW-8030 Series Water Jet Power Loom Weaving Machine

HW-8030 series water jet weaving has been extensively strengthened in the fuselage;

Adapt to the weaving of most fabrics; such as Ultra-fine denier, ultra-high density blackout fabric, airbag fabric, etc.

It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1000RPM.

Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)

Product Description

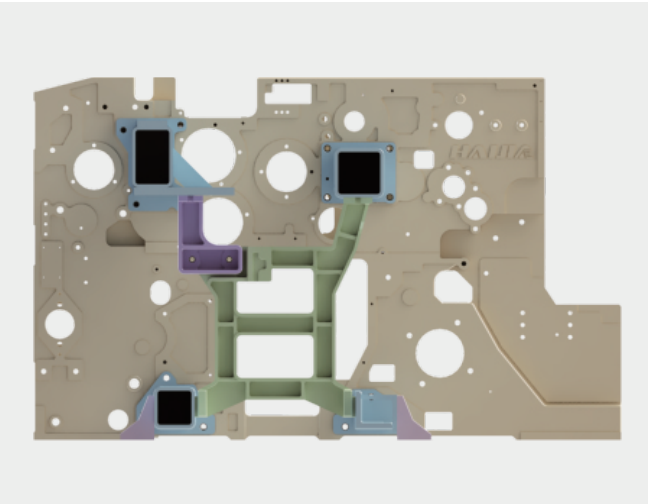

Machine architecture

It adopts a strong one-piece main board structure, enlarges the fixed area of the four beams, optimizes the fastening method between the beams, further improves the rigidity of the whole machine and lays a solid physical foundation for ultra-high-speed operation and reduction of loom vibration.

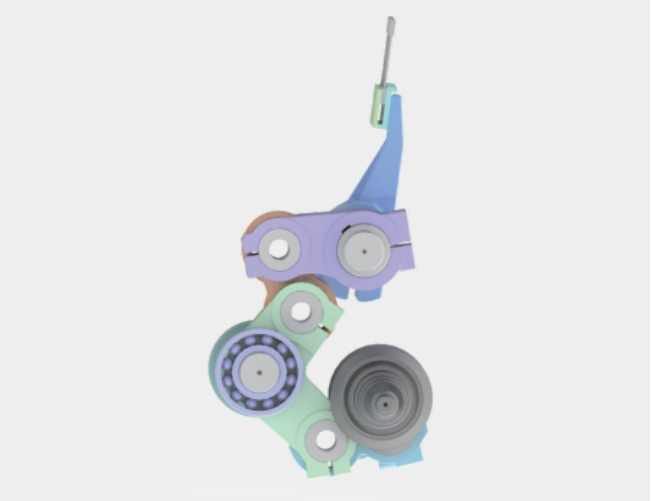

Six-link beat-up

For heavy fabrics and wide-width looms, the six-link beat-up with large angle of repose can be preferred.lt can ensure a larger flight angle and beat-up force without increasing the beat-up stroke and achieve the optimal operation speed and efficiency improve.

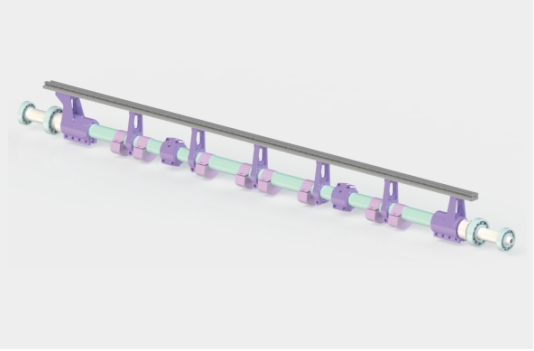

"U" shaped beat-up axis

The "U"-shaped eccentric rocking shaft is adopted to increase the mass of the balance block, which can meet the larger beating force required by heavy fabrics.

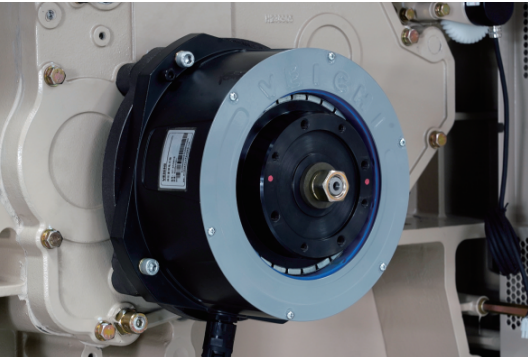

Direct drive motor part

It adopts a direct drive motor, which can automatically adjust the speed, effectively save power and eliminates wearing parts such as the main motor belt, reducing the maintenance workload.

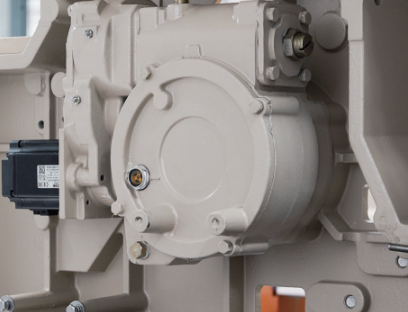

Electric let-off and take-up gear box

The turbine using copper-clad iron technology, combined with the worm axial clearance adjustment device, can maintain long-term precision transmission and can better meet the weaving needs from fine yarn to roving, from narrow to wide, and ensure excellent fabric quality. Face quality and style.

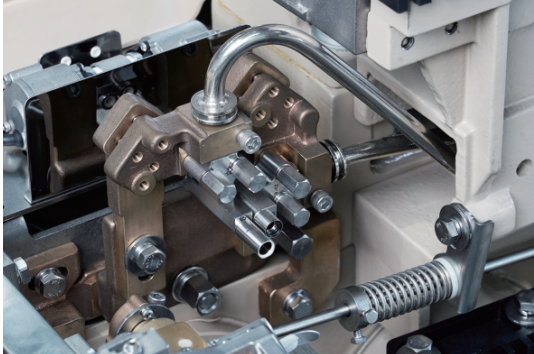

"U" shaped nozzle

The use of small outer diameter "U" nozzles can shorten the distance between multiple nozzles, and can meet the needs of weaving with a smaller beating motion.lt adopts a double clustering net structure to improve the clustering of water flow.

Company Profile

  HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.

Packaging&Shipping

FAQ

About water jet loom

Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.

Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.

Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.

Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.

Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.

About air jet loom

Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 9020 model is designed to rotate at a maximum speed of 1400 rpm, but it may vary slightly depending on the fabric type.

Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 3.7kw and 4.5kw. The wider the loom, the greater the main motor power. Users can choose to install a motorized spindle, which saves 20% to 25% more power than ordinary asynchronous motors.

Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.

About Haijia

Question:How long has your company been making machines?
Answer:Since its establishment in 1995, Haijia has been focusing on the R&D and manufacturing of water jet looms and air jet looms for 30 years, delivering 180,000 machines to 30 countries and regions worldwide, with a market share ranking first in the industry for ten consecutive years.

Question:How long is haijia machine's service life?
Answer:Haijia Looms are manufactured using the industry's top processing equipment and has the industry's most advanced electrophoretic spraying process. The machine's anti-corrosion and rust prevention capabilities have been greatly improved, and its service life is 2-3 times longer than that of other brands. Currently, the date of production of the operating machine on the market can be traced back to 2010.

Question:How long is the warranty of machine?
Answer:The industry standard warranty period is one year, and the warranty time of export machine will be appropriately extended for 2-3 months based on the voyage time.
