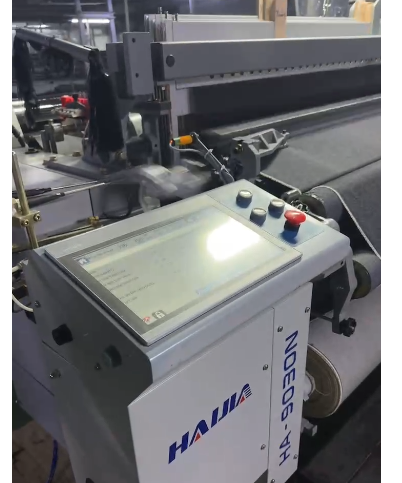

High Speed Haijia HA-9030N Series Double Nozzles Air Jet Loom Weaving Machine

The High Speed Haijia HA-9030N Series Double Nozzles Air Jet Loom delivers precision weaving with advanced air jet technology for superior textile production. Engineered for durability and efficiency, it features customizable motor options and flexible operation modes to meet diverse industrial needs.

- Effective reed width: 0-65cm (≤230cm) or 0-85cm (>230cm)
- Motor capacity options: 2.2KW to 6.0KW for varying production demands
- Flexible operation: One-hand or two-hand control (optional)
- Configurable pump system: Single or double pump (optional)
- High-speed performance with double nozzles for enhanced weaving efficiency
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • HA-9030N

  • HAIJIA

Product Description

Stronger Structure for High-Speed Weaving

  • Reinforced Machine Frame
    The HA-9030N features a strengthened fuselage and heavy-duty reinforced crossbeam, providing excellent structural rigidity for continuous industrial weaving.

  • Stable Performance at Up to 1200 RPM
    Even at a maximum speed of 1200 RPM, the machine maintains low vibration and low operating noise, helping create a more stable and comfortable production environment.

  • Wide Fabric Compatibility
    Designed for versatile production, the HA-9030N can handle a broad range of fabrics, including pure cotton, viscose, and home textile fabrics.

  • High Weft Density Capability
    When weaving 75D fabric, the machine can achieve a maximum weft density of 80 picks/cm (205 picks/inch), supporting compact and uniform fabric structures.

  • Improved Waterproof Protection
    Key internal components feature enhanced waterproofing to improve reliability in high-humidity weaving environments and reduce the impact of moisture on critical mechanisms.

  • Built for Continuous Production
    Its combination of high-speed performance, strong structural stability, fabric adaptability, and moisture resistance makes the HA-9030N suitable for demanding textile production lines.


Product Parameters

No.

Item

Technical Parameters

1

The Effective reed width(cm)

Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm)

2

Starting mode

Motorized spindle; Super start motor drive(Optional)

3

Motor capacity

2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW

4

Running operation

One-hand operation button; Two-hand operation button(Optional)

5

Pump

Single pump; Double pump(Optional)

6

Nozzle

Normal Nozzle, "U" shaped Nozzle

7

Crank shedding

4-piece type; 6-piece type; 8-piece type(Optional)

8

Positive cam shedding

6,8,10 piece type,12,14 piece type(Optional)


Product Show

Detailed structural view of HA-9030N air jet loom components

Optimized Energy Consumption & Pneumatic Efficiency

Energy management is a critical factor in large-scale textile operations. The HA-9030N integrates a redesigned pneumatic circuit paired with advanced energy-saving nozzles. This configuration drastically reduces air consumption to less than 1 cubic meter per minute. By selecting the optional motorized spindle with a super start motor drive, facilities can experience a 20% to 25% reduction in electrical power usage. The smooth, consistent airflow not only lowers operational overhead but also ensures a gentle touch on delicate yarns, preventing breakage during rapid insertion.

Industrial-Grade Materials & Rigorous Quality Control

Every touchpoint on the HA-9030N reflects meticulous craftsmanship. Core components are forged from premium aluminum alloy, offering a cool, solid tactile feel while resisting the corrosive effects of continuous production environments. The specialized "U" shaped nozzles undergo a strict surface treatment process, resulting in a sleek, rust-proof finish that extends the operational lifespan. From the initial casting phase to the final assembly, our rigorous quality control protocols ensure that every gear, pump, and shedding mechanism operates with flawless synchronization.

Advanced Shedding & Operational Control

  • Intuitive Interface: Operators will appreciate the responsive one-hand operation button, with a two-hand option available for specialized safety protocols.

  • Mechanical Flexibility: The machine supports multiple shedding configurations, including 4, 6, or 8-piece crank shedding.

  • Pattern Adaptability: Positive cam shedding options up to 14 pieces allow textile producers to seamlessly transition between simple weaves and intricate patterns without prolonged downtime.
