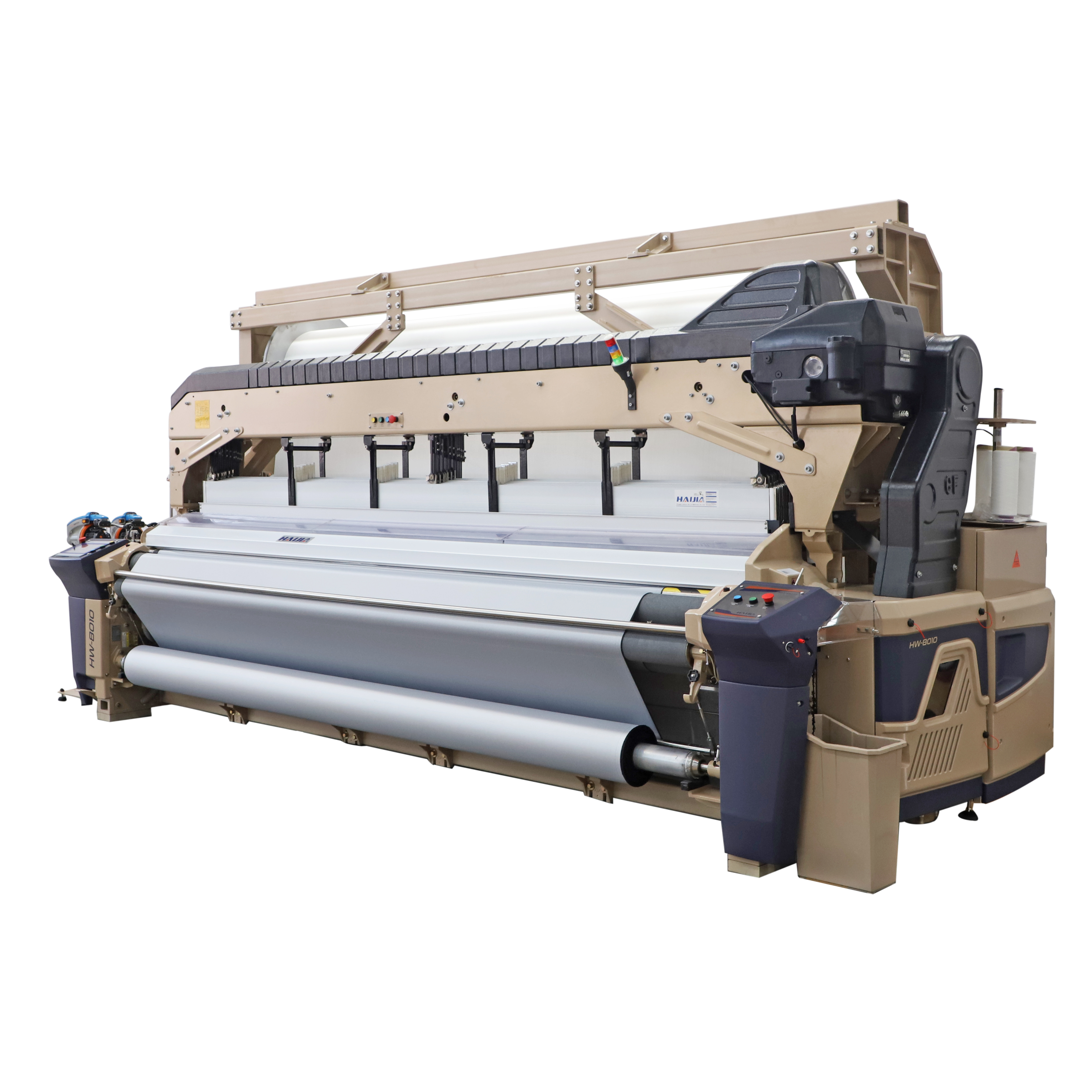

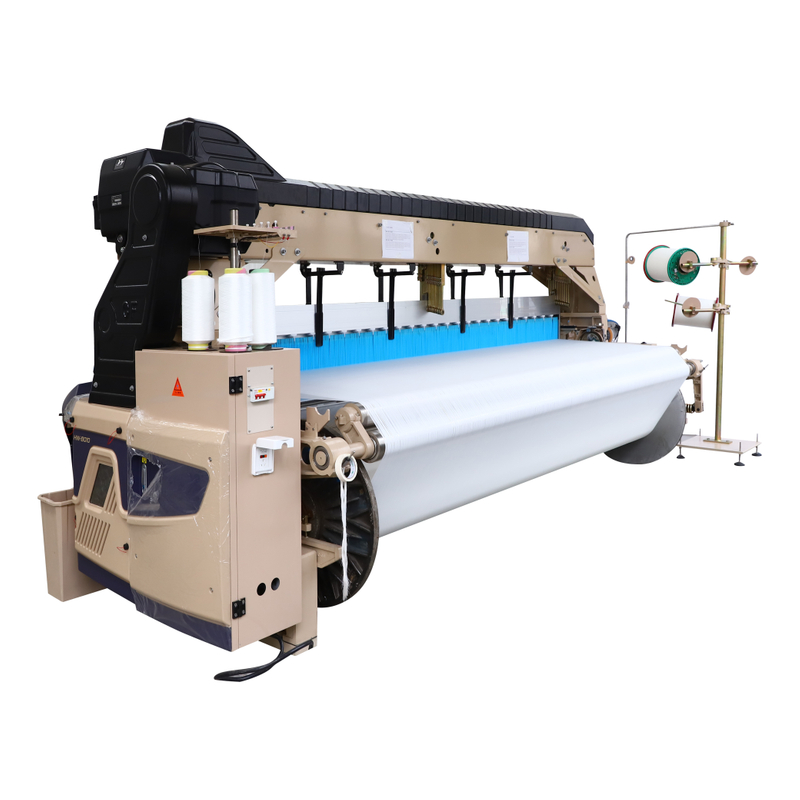

HW-8010
Haijia
Product Parameters
| No. | Item | Technical Parameters |
| 1 | The Effective reed width(cm) | Normal reed width: 0---65cm(≤230cm); 0---85cm(≥280cm) |
| 2 | Starting mode | Motorized spindle; Super start motor drive(Optional) |
| 3 | Motor capacity | 2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW |
| 4 | Running operation | One-hand operation button; Two-hand operation button(Optional) |
| 5 | Pump | Single pump; Double pump(Optional) |
| 6 | Nozzle | Normal Nozzle, "U" shaped Nozzle |
| 7 | Crank shedding | 4-piece type; 6-piece type; 8-piece type(Optional) |
| 8 | Positive cam shedding | 6,8,10 piece type,12,14 piece type(Optional) |
Optimized design of the weft beating mechanism and opening device with the newly developed "U" type short pitch nozzle further improves the weft drawing performance based on the ultra-high speed performance.
The new strong frame structure and enhanced warp feeding device shorten the path of the fabric surface before weaving and significantly improve the weft beating performance, especially the six-link weft beating, which achieves high speed and high quality at a higher level.
The adjustable axial clearance of the warp feeding worm gear enables the stability of the warp feeding device, which can be adapted to wide and dense fabrics, and can handle special specifications from very fine to coarse yarns, from narrow to wide widths, and from general fabrics to double fabrics.
The maximum design speed can reach 1400RPM
What are the diferences between "U" shaped beat up shaft and solid beat-up shaft?
It adopts a solid beat-up shaft and split counterweight block structure. By adding or subtracting counterweight blocks and combining the movement of the wall board box, different beat-up forces can be produced to meet the needs of different widths and fabrics.
The total strength is increased by integrally casting the configuration block and the beat-up claw. To guarantee precision, the surface is milled via the machining center after combination. The force of the beat-up is uniformly distributed, and the beat-up is smooth and forceful.
Our Exhibition
FAQ
About water jet loom
Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.
Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.
Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.
Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.
Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.
About air jet loom
Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 9020 model is designed to rotate at a maximum speed of 1400 rpm, but it may vary slightly depending on the fabric type.
Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 3.7kw and 4.5kw. The wider the loom, the greater the main motor power. Users can choose to install a motorized spindle, which saves 20% to 25% more power than ordinary asynchronous motors.
Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.
About Haijia
Question:How long has your company been making machines?
Answer:Since its establishment in 1995, Haijia has been focusing on the R&D and manufacturing of water jet looms and air jet looms for 30 years, delivering 180,000 machines to 30 countries and regions worldwide, with a market share ranking first in the industry for ten consecutive years.
Question:How long is haijia machine's service life?
Answer:Haijia Looms are manufactured using the industry's top processing equipment and has the industry's most advanced electrophoretic spraying process. The machine's anti-corrosion and rust prevention capabilities have been greatly improved, and its service life is 2-3 times longer than that of other brands. Currently, the date of production of the operating machine on the market can be traced back to 2010.
Question:How long is the warranty of machine?
Answer:The industry standard warranty period is one year, and the warranty time of export machine will be appropriately extended for 2-3 months based on the voyage time.
Question:How is the after-sales service?
Answer:At present, Haijia has 30 after-sales service staff. We have set up five service centers in the world, including India, Pakistan, Vietnam, Turkey and Indonesia. You can choose the nearest service center for help. We can provide 24-hour service for any problem with the machine.
Question:Is there any discount?
Answer:The top three textile head enterprises in each country are using Haijia brand looms. In order to facilitate a better development of the market, we will provide the top two users of each new market with the maximum discounts. Looking forward to working with you.
