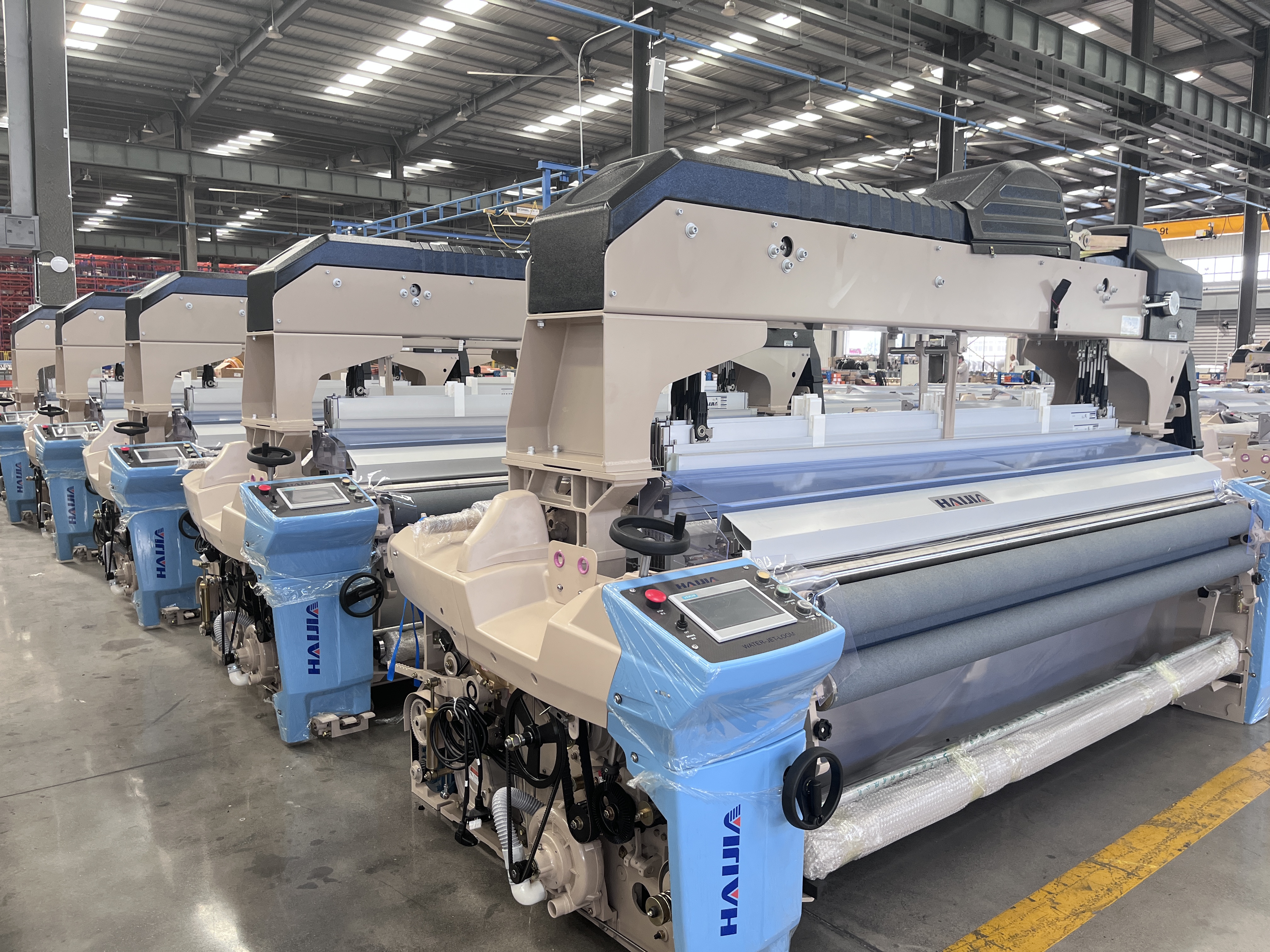

HW-3883
Haijia
84463040
Product Advantages
Stable frame
The whole wall panel of HW-3883 machine is reinforced and designed. The reed protection water pump cam part is re-optimized to improve the waterproof effect. The weft insertion part of the water pump is re-adjusted. The weft insertion is smooth and powerful. It is better suitable for wide machines and general fabric weaving.The weaving machine adopts the integrated left and right box type wall panel, which has low vibration during the running of the weaving machine. If the warp shaft uses 914 pan head, fewer changes! Can directly use 800 beam seat, customers can complete their own transformation.
Excellent energy saving
The main motor can be equipped with an optional direct-drive motor. The crankshaft is directly connected to the motor, eliminating the need for an intermediate belt transmission part, reducing losses, and making it more labor-saving and efficient.
Reliable corrosion protection
The surface anti-corrosion process of the machine combines electroscopes and powder spraying processes. The paint surface will not fall off for a long time and is better adapted to the weaving environment with high humidity.
Cost effective
The transmission gear of the rolling part is deleted, and the large sprocket wheel is used to drive the rolling roller directly, which reduces the maintenance cost of the customer.
New look
The new design appearance provides customers with a better man-machine experience, the loom shape is more smooth and beautiful, and the workshop image is improved.
Waterproof ability
Re-optimize the structure of the front and back water curtain, better solve the problem of splashing, waterproof effect is better, drainage is more smooth
maximum speed can reach 1000RPM.
The maximum weft density is 50 shuttles/cm (127 per inch) for 75D fabric for example.
Machine Specification
Water Jet Loom Configuration Table | |||
Model | HW3851、HW3873、HW600、HW6010、HW6012、HW8010、HW8030 | ||
reed width | Nominal reed width(cm) | 150、170、190、210、230、270、280、290、300、320、340、360 | |
Effective reed | Nominal reed width：0～65cm(≤230cm);0～85cm（＞230cm) | ||
Weft selection | 1color、2 colors、3 colors、4 colors | ||
power | Starting mode | Direct drive motor | super start motor drive |
Motor capacity | 2.2KW、2.7KW、3.0KW、3.7KW、4.5KW、6.0KW | ||
running operation | One-hand operation button | Two-hand operation button | |
Weft insertion | pump | single pump | double pump |
nozzle | Normal nozzle,'U'nozzle | ||
Length measurement and weft storage | （FDP）Electronic Length Measurement (FDP) | （RDP)Mechanical length measurement | |
shedding | Crank shedding: 4-piece type, 6-piece type | 8-piece type | |
Positive cam shedding: 6, 8, 10 piece type | 12,14 piece type | ||
Active dobby: 16 piece type | |||
let off | negative loose warp | Positive loose warp device | |
Left and right double bearing, 2-roll mode | |||
Maximum tension | 500Kg、1000Kg | ||
diameter of the beam flange | ∮800mm | ∮914mm、∮1000mm | |
take up | Roll cloth diameter | maximum is 520MM | |
cloth roll path | S type, L type | ||
Beating-up | Crank multi reed sley beating up mechanism, "U" shaped beating up shaft | Solid straight shaft beating up | |
4 linkage,6 linkage | |||
Weft stand | Floor fixed type 2 barrels/color | ||
Selvage | Mechanical planetary mode | ||
Yarn end treatment | Spindle false twisting method | ||
Weft cutting | Mechanical scissors for weft cutting | ||
dehydration | Suction mode of micro slit tube (electric water suction motor), buoyancy air-water separator | Water absorbing strip | |
electronic | Optical fiber type feeler | Photoelectric type | |
Touch screen, control preparation, start, stop, inching and reverse inching | |||
It can display output, speed, efficiency, shutdown times, etc | |||
The four-color indicator light indicates the reason for stopping | |||
Variable inverter/variable speed device | |||
Automation and labor saving | Automatic water replenishment valve, automatic centralized refueling | Variable frequency speed regulation | |
FAQ
1. Question: What speed can a water jet loom reach?
Answer: The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.
2. Question: What is the power consumption of a water jet loom?
Answer: The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.
3. Question: How much water does a water jet loom consume per day?
Answer: The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. A water jet loom with a water circulation treatment system can achieve 100% water recycling.
4. Question: What kinds of fabric water jet looms can made?
Answer: Water jet looms are widely used in the field of chemical fiber, common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.
5. Question: What is the price?
Answer: We have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.
6. Question: How long has your company been making machines?
Answer:Since its establishment in 1995, Haijia has been focusing on the R&D and manufacturing of water jet looms and air jet looms for 30 years, delivering 140,000 machines to 23 countries and regions worldwide, with a market share ranking first in the industry for ten consecutive years.
7. Question: How long is Haijia machine's service life?
Answer:Haijia Looms are manufactured using the industry's top processing equipment and has the industry's most advanced electrophoretic spraying process. The machine's anti-corrosion and rust prevention capabilities have been greatly improved, and its service life is 2-3 times longer than that of other brands. Currently, the date of production of the operating machine on the market can be traced back to 2010.
8. Question: How long is the warranty of the machine?
Answer:The industry standard warranty period is one year, and the warranty time of export machine will be appropriately extended for 2-3 months based on the voyage time.
9. Question: How is the after-sales service?
Answer:At present, Haijia has 30 after-sales service staff. We have set up five service centers in the world, including India, Pakistan, Vietnam, Turkey and Indonesia. You can choose the nearest service center for help. We can provide 24-hour service for any problem with the machine.
10. Question:Is there any discount?
Answer:The top three textile head enterprises in each country are using Haijia brand looms. In order to facilitate a better development of the market, we will provide the top two users of each new market with the maximum discounts. Looking forward to working with you.
