Textile weaving has come a long way from its humble beginnings with hand-operated shuttle looms to today’s advanced, highly automated weaving machines. The global textile industry has continually sought innovative ways to improve fabric production speed, quality, and efficiency while reducing costs and environmental impact. This search for better technology has led to the rise of shuttleless looms, which have transformed how fabrics are woven on an industrial scale.
Among the shuttleless looms, air jet looms and water jet looms have become two of the most popular and widely used types. Both employ different technologies to insert the weft yarn across the warp, eliminating the traditional mechanical shuttle’s limitations. Understanding the fundamental differences between these two loom types is essential for textile manufacturers looking to optimize their production lines.

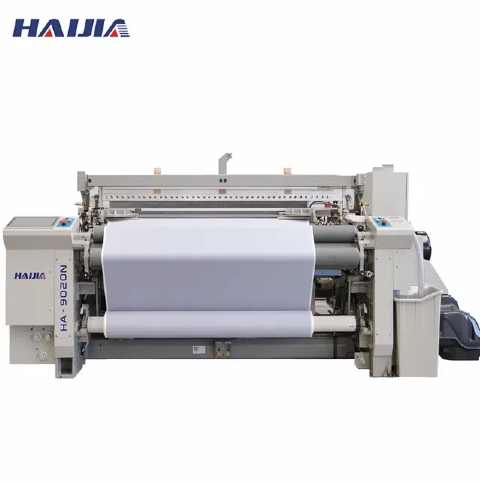

An air jet loom is a type of shuttleless weaving machine that uses bursts of compressed air to propel the weft yarn across the warp shed. Unlike traditional shuttle looms that use a physical shuttle carrying the yarn through the warp, air jet looms rely on air pressure for weft insertion, enabling much higher weaving speeds.
The core components of an air jet loom include the main nozzle, sub-nozzles, a compressed air system, shedding mechanisms, and an electronic control system. The warp yarns are stretched across the loom and separated to create a shed. A burst of compressed air from the main nozzle pushes the weft yarn from one side to the other, while sub-nozzles help guide the yarn, preventing it from tangling or deviating.
Air jet looms are ideal for weaving lightweight to medium-weight fabrics such as cotton, polyester, and their blends. They are extensively used in producing apparel fabrics, home textiles like curtains and bedsheets, and technical textiles for various industrial applications.
A water jet loom is another shuttleless weaving machine, but instead of using compressed air, it propels the weft yarn across the warp shed using a high-pressure water jet. The technology is similar in concept to air jet looms but employs water as the medium for yarn insertion.
Water jet looms consist of components such as a water pump, specialized nozzles, shedding mechanisms, and a control system. When the shed is open, a strong jet of water carries the weft yarn through the warp. The fabric is then formed by beating up the yarn and winding the finished cloth onto a beam.
Water jet looms are particularly suited for hydrophobic yarns like polyester and other synthetic fibers. They are commonly used in industrial fabric production, upholstery, and certain apparel fabrics where water usage and drying processes are feasible.
Understanding the key differences between the air jet loom and the water jet loom is critical for manufacturers seeking to choose the right weaving technology for their needs. This section dives deep into their contrasting characteristics.
The most obvious difference is the medium used to insert the weft yarn. Air jet looms use compressed air, while water jet looms use pressurized water. This distinction significantly influences their operation, energy requirements, and fabric compatibility.
Air Jet Loom: Utilizes controlled bursts of compressed air. The air jets are adjustable in pressure and timing to ensure smooth yarn insertion without damage.
Water Jet Loom: Uses a high-pressure water stream to propel the yarn. This requires a water source, filtration system, and drying facilities to manage moisture.
Because water interacts with yarns differently than air, yarn compatibility varies between the two loom types.
Air Jet Loom: Best suited for a wide range of yarns, especially hydrophobic fibers like polyester, cotton, viscose, and their blends. It performs well with delicate and fine yarns as the dry process prevents yarn swelling or water damage.
Water Jet Loom: Primarily suitable for hydrophobic synthetic yarns, such as polyester and nylon, which do not absorb water easily. Natural fibers like cotton are generally avoided because they absorb water, causing swelling and breakage.
Air Jet Loom: Known for very high weaving speeds, often reaching up to 1,400 meters per minute or more. This makes it highly suitable for high-volume textile mills focused on rapid fabric turnover.
Water Jet Loom: Typically has a lower maximum speed compared to air jet looms. The water jet mechanism limits the achievable speeds due to the dynamics of water pressure and yarn behavior in a wet environment.
The operational energy and resource requirements also differ:
Air Jet Loom: Requires energy mainly for the air compressors that generate the compressed air. While air compressors consume substantial electricity, the overall system is dry, and no water treatment or drying energy is needed.
Water Jet Loom: Requires energy both for the water pumps and for the drying processes after weaving. Water use adds complexity and cost due to filtration, recycling, and heating for drying fabrics, making it less environmentally friendly in some contexts.
Maintenance demands vary between the two:
Air Jet Loom: Maintenance mainly involves ensuring the compressed air system is free of moisture and particulates, cleaning and maintaining nozzles, and checking for air leaks.
Water Jet Loom: Requires regular maintenance of water pumps, filtration systems, water quality control, and corrosion prevention due to constant water exposure, which can cause rust and machine degradation over time.
Air Jet Loom: Produces fabrics with consistent quality and excellent surface smoothness. The dry weaving process eliminates the risk of water spots or uneven drying.
Water Jet Loom: Because the fabric is woven wet, it must be dried properly to avoid defects. The presence of water may affect fabric tension and dimensional stability temporarily.
Focusing on the air jet loom, it offers several notable advantages that have made it a preferred choice in many modern textile mills.
Air jet looms consistently operate at higher speeds compared to water jet looms, which translates directly to greater output. Textile mills seeking rapid fabric production without sacrificing quality benefit significantly from air jet technology.
Unlike water jet looms, air jet looms can weave a wider range of yarn types, including natural fibers like cotton and blended yarns, thanks to the dry air propulsion system that avoids yarn damage.
Air jet looms do not require water in the weaving process, eliminating the need for water treatment systems and energy-intensive drying processes. This not only reduces water consumption but also lowers environmental impact and operational costs.
Water jet looms may introduce water spots or stains if the drying is not uniform. Air jet looms avoid such issues entirely by using compressed air, ensuring cleaner fabric surfaces and less post-weaving processing.
Maintaining air jet looms is generally simpler since there are no water systems prone to corrosion or contamination. This reduces downtime and extends machine life, improving long-term productivity.
The applications of air jet looms cover a broad spectrum of textile production, especially where high efficiency and fabric quality are critical.
Cotton and cotton blends
Polyester and synthetic blends
Lightweight to medium-weight fabrics
Shirting, dress fabrics, and technical textiles
Apparel manufacturing: Efficient production of shirts, trousers, and casual wear
Home textiles: Curtains, upholstery fabrics, bed linens
Technical textiles: Automotive textiles, industrial fabrics, filtration materials
Many leading textile mills worldwide have incorporated air jet looms into their production lines, appreciating the balance of speed, fabric quality, and maintenance efficiency. The technology continues to gain traction in Asia, Europe, and the Americas.
Choosing between an air jet loom and a water jet loom ultimately depends on your unique production requirements, fabric types, and facility setup. The air jet loom is distinguished by its exceptional high-speed capabilities, versatility with a wide range of yarns—especially lightweight and blended fabrics—and its environmental benefits through water-free operation and lower energy consumption. Additionally, its simpler maintenance contributes to increased uptime and reduced operational costs.
For textile manufacturers aiming to boost productivity while embracing sustainable practices, the air jet loom offers a reliable and efficient solution. Upgrading to this advanced technology can significantly enhance fabric quality and streamline your production process.
