The textile industry has undergone remarkable transformation over the decades, with weaving technology advancing to meet demands for speed, efficiency, and sustainability. Among the cutting-edge innovations, the air jet loom stands out as a key player in modern textile manufacturing. Understanding the inner workings of air jet looms is essential for manufacturers, engineers, and industry enthusiasts who aim to leverage this technology to enhance productivity and fabric quality.
This article provides a detailed exploration of the air jet loom, diving into its components, weaving process, compressed air system, control mechanisms, and the advantages that make it a popular choice worldwide.

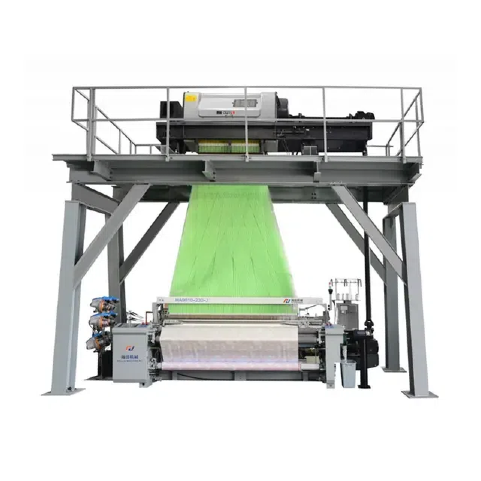

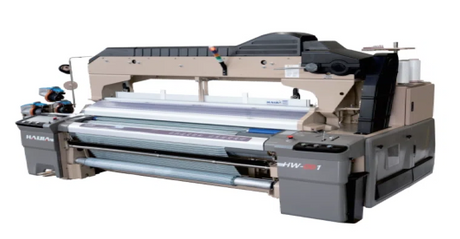

An air jet loom is a type of shuttleless loom that uses compressed air to insert the weft yarn through the warp threads during the weaving process. Unlike traditional shuttle looms that physically pass a shuttle carrying the yarn across the loom, the air jet loom propels the yarn with bursts of air. This method allows for rapid, smooth, and efficient weaving, especially suited for lightweight and synthetic yarns.
The air jet loom’s unique weaving mechanism enables manufacturers to achieve high speeds, reduce mechanical wear, and improve fabric quality. As textile mills strive for higher output with less environmental impact, air jet looms have become indispensable.
Understanding how these machines function internally offers valuable insight into optimizing their performance and maintenance.
To grasp how an air jet loom operates, it is important to understand its main components and their roles:
Warp Beam: Holds the warp yarns under tension and feeds them into the weaving zone.
Shed Formation Mechanism: Controls the raising and lowering of warp yarns to create the shed—an opening through which the weft yarn passes.
Main Nozzle: The critical component that uses compressed air to propel the weft yarn through the shed.
Sub-Nozzles (Auxiliary Nozzles): Assist in guiding and controlling the weft yarn’s trajectory after the main nozzle has launched it.
Take-Up System: Collects the woven fabric onto the cloth beam, maintaining fabric tension and ensuring consistent quality.
Compressed Air System: Supplies and regulates the air pressure necessary for the main and sub-nozzles to function efficiently.
Each component must work seamlessly in coordination to achieve the desired fabric structure and weaving speed.
The air jet loom weaving process involves precise timing and coordination of mechanical and pneumatic actions. Here’s a step-by-step explanation:
Shed Creation: The loom’s shedding mechanism lifts selected warp yarns to form the shed—a triangular opening that allows the weft yarn to pass through.
Weft Insertion: The weft yarn is positioned at the starting point of the shed. The main nozzle releases a controlled burst of compressed air, propelling the yarn across the shed.
Weft Guidance: Sub-nozzles, positioned along the shuttle path, use smaller air jets to stabilize and guide the weft yarn, preventing deviation and ensuring proper placement.
Beating-Up: Once the weft yarn crosses the shed, the reed pushes (beats) it tightly against the previously woven fabric, securing the weave.
Fabric Take-Up: The woven fabric is rolled onto the cloth beam by the take-up system, maintaining consistent tension.
Warp Yarn Advancement: The warp beam advances the warp yarns to prepare for the next pick insertion.
This process repeats at high speeds, with the air jet loom capable of over 1,200 picks per minute in modern setups.
The core innovation of the air jet loom lies in its use of compressed air to insert the weft yarn, replacing the mechanical shuttle used in older looms.
The loom relies on an external or integrated air compressor to generate compressed air, which is stored in reservoirs at regulated pressures. The air system must provide consistent, clean, and dry air to prevent damage or malfunction.
Control valves and timing devices synchronize the release of compressed air bursts, ensuring precise launching of the yarn. The air pressure must be finely tuned to suit the type of yarn, fabric density, and weaving speed.
Correct air pressure is vital; too low and the yarn won’t travel across the shed effectively, causing weaving faults. Too high and the yarn may tangle or damage warp threads.
Timing is equally critical to coordinate the air bursts with shed formation and sub-nozzle actions, preventing yarn misplacement or fabric defects.
While air compressors consume electricity, advancements in compressor efficiency and electronic controls have optimized energy use. Modern air jet looms often include variable frequency drives (VFD) and smart air pressure management to reduce power consumption.
Modern air jet looms are equipped with sophisticated electronic control units (ECUs) that monitor and adjust various parameters in real time:
Tension Control: Sensors continuously monitor warp and weft yarn tension, adjusting mechanisms to maintain fabric uniformity.
Speed Regulation: Automated speed control balances production efficiency with quality, preventing defects at high speeds.
Yarn Break Detection: The loom can detect yarn breaks instantly, stopping the machine to minimize waste.
Weft Insertion Monitoring: Cameras and sensors verify proper yarn insertion and guide nozzle adjustments.
Increasingly, air jet looms are integrated into Industry 4.0 ecosystems, with IoT connectivity enabling remote monitoring, predictive maintenance, and data analytics. This automation boosts uptime, reduces manual intervention, and improves overall efficiency.
The air jet weaving technology offers several distinct benefits over traditional and other shuttleless looms:
High-Speed Production: The absence of a mechanical shuttle and the use of compressed air allow for weaving speeds exceeding 1,200 picks per minute, significantly improving throughput.
Reduced Mechanical Wear: Fewer moving mechanical parts reduce friction and wear, lowering maintenance costs and increasing machine longevity.
Versatility with Yarn Types: Air jet looms handle a broad range of synthetic and natural yarns, including fine polyester, cotton blends, and even complex filament yarns.
Fabric Quality: Precise control over weft insertion reduces yarn damage, producing smoother, more uniform fabrics.
Energy and Environmental Efficiency: Compared to water jet looms, air jet looms consume less energy overall and operate without water, making them more sustainable.
These advantages make the air jet loom a preferred choice for mills aiming to optimize production while maintaining high quality and sustainability.
Understanding the inner workings of air jet looms is critical for textile manufacturers who want to maximize the benefits of this advanced weaving technology. From its key mechanical components and precise weaving process to the vital role of the compressed air system and smart automation, every aspect contributes to its high-speed, efficient, and sustainable operation.
As the textile industry continues to evolve, air jet looms will remain at the forefront of innovation, enabling producers to meet growing demands for quality, productivity, and environmental responsibility.
