In the rapidly evolving textile manufacturing industry, the Water Jet Loom has established itself as a crucial technology, revolutionizing fabric production with efficiency and quality. This article offers an in-depth introduction to the Water Jet Loom, covering what it is, its development history, working principles, and the key components that make it a state-of-the-art weaving machine.

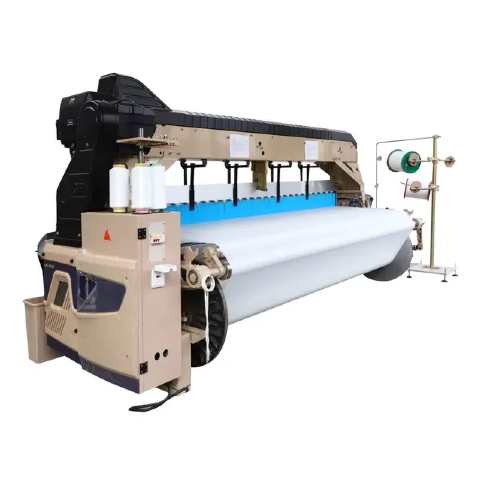

A Water Jet Loom, also known as a water jet weaving machine, is a modern type of loom that uses a high-pressure jet of water to propel the weft yarn through the warp yarns during the weaving process. Unlike traditional shuttle looms, which physically carry the weft yarn back and forth, the water jet loom utilizes a powerful water stream to insert the yarn rapidly and smoothly. This innovative method significantly increases weaving speed and overall production efficiency.
Key Characteristics of Water Jet Looms include:
High-Speed Weaving:
Water jet looms can achieve weaving speeds that are much faster than conventional shuttle or air jet looms. The water jet propels the weft yarn quickly across the warp, minimizing insertion time and enabling higher fabric output. This makes it an ideal choice for mass production in textile factories.
Energy Efficiency:
Using water as the medium to carry the weft yarn reduces reliance on compressed air or mechanical parts that consume more energy. This not only lowers electricity costs but also reduces mechanical wear and tear, enhancing machine longevity.
Fabric Quality:
The gentle force of water as the yarn carrier ensures that delicate fibers and synthetic yarns are handled with minimal damage or breakage. This is especially important for high-quality fabric production where yarn integrity affects the final product’s texture and strength.
Environmental Considerations:
Modern water jet looms are equipped with water recycling and filtration systems that reclaim and reuse water during operation. This minimizes water waste and supports sustainable manufacturing practices, aligning with global environmental standards.
Suitability for Synthetic Fibers:
Water jet looms are particularly well-suited for weaving synthetic fibers like polyester, nylon, and their blends. These materials are hydrophobic and resistant to water absorption, allowing them to maintain strength and quality despite contact with water jets.
Due to these advantages, Water Jet Looms are widely applied in industries producing apparel fabrics, home textiles, and technical textiles, making them a cornerstone technology in modern textile manufacturing.
The concept of using water jets in weaving dates back several decades and has evolved alongside advances in textile machinery and fluid dynamics technology.
The origins of water jet weaving technology can be traced back to the mid-20th century when engineers began exploring alternative methods to replace traditional shuttle looms. The aim was to increase weaving speed and reduce mechanical wear caused by heavy shuttle movements.
1960s-1970s: Initial prototypes of water jet looms appeared, focusing on harnessing water's force to carry the weft yarn.
Early Challenges: Early machines faced difficulties in controlling water pressure and preventing yarn damage, limiting widespread adoption.
With progress in pump technology, materials science, and computer control systems, the water jet loom industry saw substantial improvements:
1980s: Introduction of precision water jet nozzles and improved water recycling technology.
1990s: Integration of electronic controls and sensors enhanced machine reliability and speed.
2000s to Present: Modern water jet looms feature automation, energy-saving pumps, and user-friendly interfaces, expanding their market reach globally.
Today, countries with strong textile industries, such as China, India, and Turkey, have extensively adopted water jet looms. Companies like Qingdao Haijia Machinery Co., Ltd. have contributed to the development of advanced water jet loom models that focus on higher productivity and environmental sustainability.
Understanding the working principle of a Water Jet Loom helps to appreciate why it is favored for high-speed weaving of synthetic fabrics.
Weaving involves interlacing two sets of yarns:
Warp yarns: Longitudinal threads held under tension on the loom.
Weft yarns: Transverse threads inserted through the warp to form fabric.
The Water Jet Loom replaces the traditional shuttle mechanism with a water jet to carry the weft yarn across the warp shed.
Shedding: The loom lifts and lowers the warp yarns in a specific pattern to create a shed—a gap through which the weft yarn can pass.
Weft Insertion: A high-pressure water jet nozzle shoots a jet of water into the shed, propelling the weft yarn across the loom.
Beating-up: A reed pushes the inserted weft yarn against the woven fabric to tighten the weave.
Take-up and Let-off: The fabric is wound onto a cloth beam while more warp yarn is released for continuous weaving.
The water jet is created by pumps that push water at high velocity through narrow nozzles.
The yarn is introduced into the water jet stream, which carries it efficiently across the shed.
The water used is filtered and recycled in modern machines to reduce consumption.
Precise control of water pressure and jet direction ensures minimal yarn entanglement or damage.
Speed: Water jets propel the yarn much faster than mechanical shuttles.
Reduced Mechanical Wear: Fewer moving parts reduce maintenance needs.
Smooth Yarn Handling: Particularly beneficial for delicate or synthetic yarns.
A modern Water Jet Loom is a complex integration of mechanical, hydraulic, and electronic systems designed to work in harmony. Below are the core parts and their functions.
Holds the warp yarns under tension.
Provides a steady supply of warp threads to the loom.
Raises and lowers selected warp yarns to form the shed.
Can be controlled mechanically or electronically.
Includes heddles and harness frames.
The heart of the water jet loom.
Produces the high-speed jet of water that carries the weft yarn.
Typically made of corrosion-resistant materials like stainless steel.
Adjustable to control jet pressure and direction.
Feeds the weft yarn into the water jet stream.
Includes guides and tensioners to ensure smooth yarn flow.
Pushes the inserted weft yarn into place.
Maintains fabric density and uniformity.
Winds the woven fabric onto the cloth beam.
Controls fabric tension and prevents distortion.
Releases warp yarn from the warp beam at a controlled rate.
Pumps provide pressurized water for the jet.
Filters and recycles water to minimize waste and environmental impact.
Electronic controls manage shedding, weft insertion timing, water pressure, and machine speed.
Modern looms use PLC (Programmable Logic Controller) or computer interfaces for precision and automation.
Sensors monitor yarn breakage, water flow, and machine performance to reduce downtime.
The Water Jet Loom exemplifies cutting-edge innovation in textile machinery by delivering high-speed production, energy efficiency, and superior fabric quality. Gaining a thorough understanding of its features, history, and operation reveals why it remains a preferred choice in today’s textile industry. For those seeking reliable and advanced water jet weaving solutions, Qingdao Haijia Machinery Co., Ltd. stands out as a trusted leader. With a commitment to technological advancement and customer satisfaction, they offer a range of efficient, durable machines tailored to meet the evolving needs of fabric manufacturers worldwide. To explore how their water jet looms can enhance your production capabilities, we highly recommend visiting their official website at www.waterjetloom.com or contacting their expert team directly. Discover how partnering with Qingdao Haijia Machinery can transform your textile business and keep you at the forefront of industry innovation.
