Weaving is one of humanity’s oldest crafts, evolving from simple hand-operated looms to today's advanced textile machinery. As textile demand surged globally, traditional looms struggled to meet production efficiency and quality standards. In response, shuttleless looms emerged—first rapier and water jet models, followed by the pioneering air jet loom, a technology revolutionizing modern textile weaving.
The rise of high-speed looms fundamentally transformed textile manufacturing. Mills worldwide sought solutions combining greater throughput with lower operational costs. The air jet loom emerged as a critical innovation by using compressed air to insert weft yarn at high speed, enabling fast, reliable weaving suitable for light to medium-weight fabrics.
In today’s fast-paced textile industry, the air jet loom stands out as a game-changer, offering unmatched speed, automation, and energy efficiency—ideal for modern high-volume production. It represents a significant leap from older weaving methods while meeting contemporary demands.

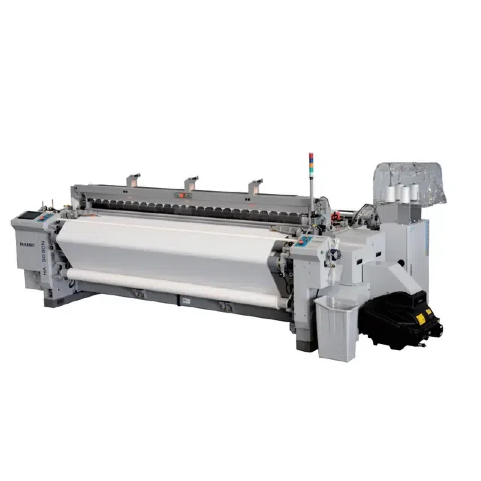

An air jet loom is a shuttleless weaving machine that propels weft yarn across the warp shed using bursts of compressed air, instead of mechanical shuttle operations. This design eliminates bulky shuttles, reducing mechanical wear, improving speed, and lowering noise levels.
At its core, an air jet loom features:
A yarn feeder for warp
Compressor-driven nozzle system for weft insertion
Shedding and beating-up mechanisms
Automatic control system with sensors and programmable settings
Traditional shuttle looms use a physically propelled shuttle carrying the weft yarn through the warp shed. This mechanism is slower, noisier, and subject to wear and tear. In contrast, the air jet loom eliminates the shuttle entirely, relying on airflow for yarn insertion—achieving greater efficiency and less mechanical complexity.
Main Nozzle & Sub-Nozzles: Deliver bursts of compressed air to propel yarn.
Yarn Feeders: Maintain tension and feed yarn continuously.
Control System: Touchscreen interface, programmable weaving parameters, and sensors.
Shedding Mechanism: Opens and controls warp shed for weft insertion.
Beating Up Reed: Secures weft in place after insertion.
Together, these components form a fast, efficient weaving setup where air jet weaving occurs seamlessly, with minimal intervention and precise control.
Warp Yarn Setup: Warp ends are warped and spread across the loom.
Shed Opening: Shedding mechanisms lift and lower warp yarns to create a space known as a shed.
Air Jet Weft Insertion: A compressed air blast via the main nozzle propels the weft yarn across the shed. Sub-nozzles help guide the yarn path, ensuring straight and consistent filling.
Beat-Up: After insertion, the reed pushes the weft to form a tight fabric structure.
Take-Up and Let-Off: The fabric is wound onto a cloth beam while warp yarn is continuously released, controlled by cloth and warp let-off systems.
Central to an air jet loom is the compressed air system. It delivers high-velocity bursts through nozzles, replacing mechanical insertion methods. Advanced systems allow for adjustable pressure and timing, optimizing yarn insertion for fabric type and speed while reducing air consumption.
Main Nozzle: Generates force to push the weft across the width—critical in achieving high weaving speed.
Sub-Nozzles: Guide the yarn’s trajectory, reducing friction and ensuring proper placement.
Control System: Monitors the entire process, adjusting air pressure, yarn tension, and detecting faults. Modern looms feature user-friendly touchscreens and program memory for quick setup changes.
This integrated system ensures the air jet weaving mechanism operates smoothly with high consistency and precision.
Air jet looms can achieve weaving speeds up to 1,400 meters per minute, significantly higher than water jet or rapier looms. This high-speed performance translates to greater throughput and lower labor costs per meter produced.
Without a mechanical shuttle, the loom runs with minimal vibration and significantly reduced noise levels, improving working conditions and reducing maintenance frequency.
Compared to water jet looms, air jet models don’t require water management systems or drying processes—lowering electricity usage and reducing environmental footprint, especially when paired with energy-efficient compressors.
Ideal for cotton, polyester, and blend fabrics, air jet looms excel in weaving light to medium weights. They offer uniform tension and consistent fabric quality, especially for fine yarns or delicate materials.
Commonly used for:
Cotton and cotton blends
Polyester and mixed synthetic yarns
Lightweight fabrics like shirting, poplin, and voile
The air jet loom handles fine yarns with high precision, allowing for smooth, even weaving across widths.
Air jet looms are widely adopted in:
Apparel fabrics (dress shirts, trousers, casual wear)
Home textiles (bedsheets, curtains, upholstery)
Industrial fabrics (automotive textiles, technical fabrics)
Their high-speed throughput supports large-scale production, particularly where fabric uniformity and consistency are critical.
Leading textile producers around the world rely on air jet looms for consistent high-speed output. From Asia to Europe and the Americas, mills integrate these machines into lean production lines, benefiting from their reliability and automation.
Air jet looms often deliver higher weaving speeds than water jet looms, especially for lightweight fabrics.
Water jet models are limited by water pressure and yarn interaction.
Water jet looms handle heavier yarns and coarser fabrics more effectively (e.g., denim, heavy cotton).
Air jet looms excel with fine, light, or medium yarns for smoother results.
Water jet looms require water supply and drainage systems, raising installation and maintenance costs.
Air jet looms avoid water usage but require compressors and regular nozzle servicing. Energy cost depends on compressor efficiency.
Feature | Air Jet Loom | Water Jet Loom |
Weaving Speed | Very high | High, but lower than air jet |
Fabric Types | Light/medium yarns | Medium/heavy yarns |
Energy Usage | Compressed air (energy efficient) | Water and energy for drying |
Maintenance | Nozzles & compressors | Water system, hoses, water filters |
If your textile mill focuses on lightweight fabrics.
When vending high production volumes quickly.
If your facility favors dry systems with minimal water usage.
The air jet loom delivers an ideal combination of speed, precision, low maintenance, and energy efficiency—making it a smart choice for today’s competitive textile industry. Its shuttleless design and advanced compressed-air insertion enable faster production with excellent fabric quality, especially for lightweight and blended materials.
As the global demand for automated, eco-friendly, and high-throughput weaving solutions grows, air jet looms are becoming the preferred option for forward-thinking textile manufacturers.
If you're considering upgrading your weaving capabilities, now is the time to explore the advantages of modern air jet technology.
We recommend Qingdao Haijia Machinery Co., Ltd., a trusted manufacturer offering innovative, high-performance air jet looms backed by years of experience and international market reach.
