High-volume production of satin fabric requires balancing the delicate, low-interlacement structure of the weave with the aggressive mechanical demands of modern industrial looms. Textile manufacturers must achieve high-speed output and flawless fabric faces, free of snags or tension inconsistencies, while managing the specific shedding and weft-insertion challenges inherent to long-float weaves. Evaluating the transition from traditional shuttle or air-jet weaving to a water jet loom requires a strict understanding of warp preparation, shedding mechanisms, and fiber compatibility. Mill operators must align their technical infrastructure with the specific demands of synthetic yarns to ensure profitable, defect-free production. Mastering these variables allows facilities to maintain continuous operation without compromising the signature luster and drape of the final textile.
Satin weave architecture relies on minimal interlacement (typically 4 or more warp yarns over a single weft yarn), requiring precise warp tensioning to prevent float distortion.
The water jet loom is the industry standard for high-speed, synthetic satin production (polyester, nylon) due to its rapid weft insertion and low yarn friction, but it is strictly incompatible with hydrophilic fibers like silk or cotton.
Successful loom setup for satin requires specific drawing-in drafts, tie-up/chain drafts, and shedding mechanisms (typically electronic dobby) to handle 5-end, 8-end, or reinforced satin configurations.
Maximizing ROI depends on mitigating water-jet-specific defects, such as uneven nozzle pressure causing weft loops, and managing post-weave drying logistics.
Table of Contents
Satin weave architecture relies on minimal interlacement, where four or more warp yarns pass over a single weft yarn before anchoring. This geometric structure maximizes light reflection across the unbroken filament surfaces to create a glossy, lustrous face. The 90-degree interlacing of warp and weft yarns with minimal intersection points yields a flexible drape and a dull back. This low interlacement density gives satin its signature smooth texture, but it presents severe tensioning challenges during high-speed production. When warp yarns float over multiple picks, they lack the frequent binding points found in plain weaves. This absence of binding means the yarns can shift laterally if the reed density is incorrect or if the let-off tension fluctuates. Mill technicians must constantly monitor the warp beam to ensure uniform tension across the entire width of the fabric, preventing the floats from sagging or creating a wavy appearance on the fabric surface.
The structural integrity and drape of a satin fabric depend heavily on its harness setup and the resulting step value. A 5-harness (5-end) setup offers a balanced compromise between surface luster and structural stability. It requires the warp yarn to float over four weft yarns and interlace on the fifth. In contrast, an 8-harness (8-end) setup creates longer floats, passing over seven weft yarns before interlacing. These longer floats increase fabric luster and flexibility but reduce structural stability. Higher end-counts result in a smoother face but are highly susceptible to snagging during the weaving process and in end-use. Operators must adjust the beat-up force when transitioning between these variations, as the lack of interlacement in 8-end satin offers less resistance to the reed, requiring precise control to maintain the correct pick density.
In complex or heavy-duty textile designs, plain satin lacks the necessary durability to withstand industrial handling or specific end-use friction. Reinforced warp-faced satin introduces strategic secondary interlacement points to stabilize exceptionally long floats without disrupting the characteristic face luster. These secondary points anchor the long warp yarns, preventing them from shifting or snagging. By adding a secondary binding point hidden beneath the adjacent floating yarns, weavers can maintain the visual appeal of an 8-end or 12-end satin while providing the mechanical stability of a tighter weave. This technique requires advanced dobby programming to ensure the secondary interlacements do not create visible diagonal twill lines on the fabric face.
Weaving satin inherently involves severe production risks on the mill floor. The long floats are highly susceptible to snagging on rough heddles, damaged reed dents, or even the weaver's hands during tie-in. Warp-faced tension imbalances cause the fabric to pucker, distort, or track unevenly onto the take-up roll. Achieving a solid, lustrous fabric face requires high-density warp packing, which places significant stress on the loom's shedding mechanisms. The sheer volume of yarn crowded into the reed demands robust warp sizing to prevent filament breakage from adjacent yarn friction. If the sizing chemistry is inadequate, the friction generated during shedding will fray the synthetic filaments, leading to warp breaks, loom stops, and visible defects in the finished roll.
Satin Type | Harness Requirement | Float Length | Primary Advantage | Production Challenge |
|---|---|---|---|---|
5-End Satin | 5 Harnesses | 4 Yarns | Balanced durability and luster | Visible diagonal lines if step value is incorrect |
8-End Satin | 8 Harnesses | 7 Yarns | Maximum surface smoothness | High risk of float snagging and tension loss |
Reinforced Satin | 8+ Harnesses | Variable | High stability for heavy fabrics | Requires complex dobby programming |

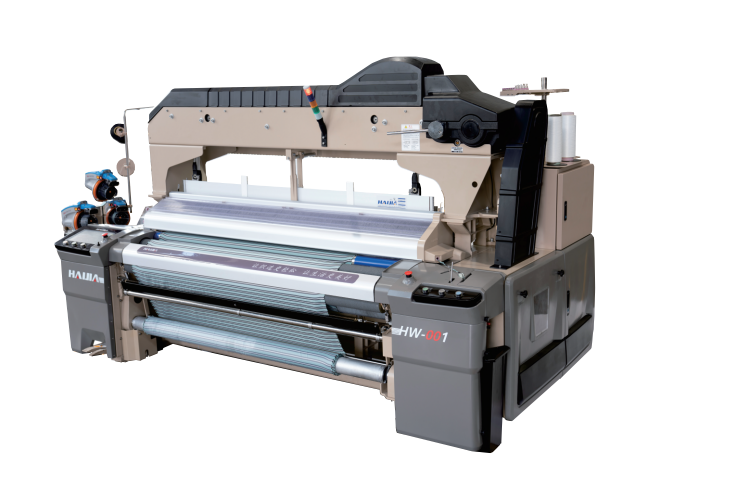

The water jet loom is exclusively viable for hydrophobic synthetic yarns, such as polyester, nylon, and acetate. These materials dominate the modern commercial satin market due to their cost-efficiency and performance characteristics. Synthetic fibers do not absorb water, allowing them to maintain their tensile strength and structural integrity during the wet insertion process. Conversely, natural hydrophilic fibers like silk, cotton, or rayon require rapier or air-jet looms. If a mill attempts to run cotton on a wet insertion system, the water absorption swells the yarn, degrades its strength, and completely disrupts the shedding geometry, leading to massive warp breakage and fabric ruin.
A pressurized water pump and nozzle system propels the weft yarn across the shed. This frictionless insertion method is ideal for maintaining the smooth, untwisted nature of synthetic filament yarns used in satin. It eliminates the mechanical wear common to rapier bands or projectile grippers, reducing the risk of filament damage and ensuring a pristine fabric face. The precise control of the water jet nozzle ensures consistent weft tension, which prevents loops and snags in the long floats. The water droplet encapsulates the leading edge of the weft yarn, carrying it through the shed with minimal air resistance. Technicians must calibrate the pump pressure to match the denier of the weft yarn; too much pressure causes the yarn to rebound off the catch cord, while too little results in short picks.
Wet insertion systems offer massive production benefits for high-volume manufacturers. They achieve substantially higher picks-per-minute (PPM) compared to traditional mechanical looms, often exceeding 1000 PPM depending on the fabric width. This increased speed translates directly into higher daily yardage output per machine. The combination of high-speed insertion and low yarn friction maximizes efficiency and yield. Because there are fewer moving mechanical parts in the insertion zone, maintenance downtime is reduced. Operators can manage more machines simultaneously, optimizing labor allocation on the weaving floor while maintaining strict quality control over the satin output.
Warp sizing must be specifically tailored for synthetic yarns exposed to water during the insertion process. The sizing agent, typically an acrylic or PVA blend, must protect the filaments from abrasion during high-speed shedding without dissolving instantly in the water jet spray. Proper sizing prevents filament breakage and ensures the warp yarns withstand the aggressive mechanical demands of the heddles and reed. If the sizing is too water-soluble, the spray from the nozzle will wash it away at the fell of the cloth, causing the warp ends to fray and break under the beat-up force. Mill chemists must formulate the size bath to provide a tough, flexible film that survives the wet weaving zone but can be easily scoured off during downstream finishing.
Setting up the weaving equipment for satin depends on three core technical elements that dictate the fabric's final geometry. Operators must verify these documents before tying in a new warp.
The Drawing-In Draft: Instructs the weaver on how warp yarns are threaded through the individual heddle eyes across the various harnesses to achieve the required pattern.
The Tie-Up / Chain Draft: Defines the mechanical or electronic sequence in which harnesses are raised or lowered to create the shed for each pick.
The Reed Plan: Details the density and spacing of warp ends through the reed dents to prevent friction, control the fabric width, and ensure the high-density packing required for satin.
The drawing-in draft dictates how yarns are threaded through the heddles to achieve the specific step-value required for a true satin weave. Twill threading configurations, with a single harness raised per shed, optimize mechanical motion on high-speed industrial equipment. This setup allows the weft to float under a group of warp ends, creating the characteristic warp-faced satin while minimizing harness movement. For a 5-end satin, the draft will distribute the warp ends evenly across five harnesses. Technicians must ensure no two adjacent warp ends interlace on consecutive picks, which would create a twill line and ruin the smooth satin appearance.
Dobby shedding motions, specifically electronic dobbies, are essential to manage the independent harness lifting required for 5-end or 8-end satin patterns. Basic plain weave cam capabilities are entirely insufficient for the complex, staggered shedding sequences of satin. Electronic dobbies provide the precise control needed to execute these intricate patterns at high speeds without compromising tension. They allow operators to change weave structures via digital interfaces rather than manually swapping mechanical cams. This flexibility is vital for mills producing various satin constructions, as it drastically reduces changeover time between production runs.
Setting let-off and take-up tension is critical to prevent slack floats and ensure uniform fabric density across the width of the machine. The electronic let-off mechanism must release the warp yarns from the beam at a consistent rate, while the take-up mechanism must pull the woven fabric with equal precision. Proper calibration prevents tension imbalances that cause the long floats to pucker or snag. Operators use tension meters to verify the warp sheet is taut. If the let-off is too loose, the beat-up will push the weft yarns too close together, creating dense bands. If it is too tight, the warp yarns will snap under the strain of shedding.
Hard water or inconsistent pump pressure leads to short picks, weft loops, or fabric staining, directly impacting the grade of the finished satin. Implementing robust water filtration systems is necessary to prevent calcium and magnesium buildup in the fine orifices of the nozzles. Consistent nozzle pressure ensures the weft yarn is propelled across the shed with uniform force, preventing loops and ensuring a tight, even weave. Mill maintenance teams must regularly flush the pump systems and replace nozzle tips to maintain the precise spray angle required for flawless insertion.
Mechanical adjustments within the reed and beat-up mechanism are required to prevent abrasion on the delicate, long warp floats during high-speed operation. The reed must be perfectly aligned, and the beat-up force must be calibrated to pack the weft yarns tightly without damaging the warp filaments. Operators must inspect the reed for burrs or damaged dents, which will instantly slice through the synthetic filaments. Additionally, the fabric take-up rollers must be covered with appropriate anti-slip materials that grip the smooth satin without causing surface chafe or bruising.
Efficient vacuum extraction and thermal drying are immediate downstream requirements to prevent mildew and stabilize the synthetic satin fabric post-weaving. Because the fabric exits the machine completely saturated, it must pass over a vacuum slot to remove excess bulk water before entering a heated drying cylinder system. The wet fabric must be dried quickly and uniformly to maintain its structural integrity and prevent uneven shrinkage. Proper tension control during this drying phase is critical; if the fabric is stretched while hot and wet, the satin floats will distort, ruining the dimensional stability of the textile.
The high-volume output of wet-inserted synthetic satin serves profitable markets, including bridal wear, evening apparel, interior linings, and high-end synthetic bedding. The smooth, lustrous finish and flexible drape make synthetic satin highly desirable for these applications. The cost-efficiency of this weaving method allows manufacturers to offer competitive pricing in these lucrative markets. Polyester satin linings, for example, require massive yardage and strict defect limits, making the high-speed, low-fault output of wet insertion systems the only viable production method.
Running these facilities involves strict environmental and operational compliance factors, including wastewater treatment, filtration, and closed-loop recycling systems. Modern textile facilities must implement these systems to manage massive water consumption and prevent environmental contamination from sizing agents and synthetic microfibers. Scalability depends entirely on the facility's capacity to handle these infrastructure requirements efficiently. Mills that invest in advanced reverse osmosis and biological treatment plants can recycle up to 80% of their weaving water, drastically reducing municipal water costs and ensuring long-term operational viability.
Producing premium satin fabrics requires precise control over weave structure, warp preparation, water jet weft insertion, and tension management throughout the weaving process. By optimizing loom setup, water quality, electronic dobby control, and post-weaving finishing, textile manufacturers can improve production efficiency, minimize defects, and consistently produce high-quality satin fabrics for large-scale commercial applications.
Working with an experienced textile machinery manufacturer is equally important for ensuring reliable production performance and sustainable business growth. Haijia specializes in advanced water jet looms, air jet looms, and intelligent weaving solutions. With innovative engineering, strict quality control, and comprehensive technical support, we help textile manufacturers improve weaving efficiency, optimize fabric quality, and expand production capacity across apparel fabrics, home textiles, technical textiles, and industrial fabric applications.
Audit your facility's wastewater treatment capacity to ensure it can handle the effluent volume generated by wet insertion weaving before purchasing new equipment.
Conduct a pilot run to test nozzle pressure calibration and warp tensioning on a specific denier of polyester to establish baseline quality metrics.
Implement a strict maintenance schedule for reed inspection and nozzle replacement to eliminate mechanical sources of float snagging and weft loops.
Upgrade to electronic dobby shedding systems to reduce changeover times when switching between 5-end, 8-end, and reinforced satin weave structures.
A: No. Water jet looms are strictly limited to hydrophobic synthetic fibers like polyester and nylon. Natural fibers like cotton and silk absorb water instantly, which degrades their tensile strength, swells the yarn, and causes massive warp breakage during the wet insertion process.
A: A 5-end satin requires 5 harnesses, floating the warp over four wefts, offering a balance of luster and stability. An 8-end satin requires 8 harnesses, floating over seven wefts, creating a smoother, more lustrous face but resulting in lower structural durability and higher snag risk.
A: A high-pressure water pump and precision nozzle mechanism propel a concentrated jet of water that encapsulates the weft yarn, carrying it across the open warp shed frictionlessly at extremely high speeds.
A: Dobby shedding provides the independent, programmable harness control necessary to execute the complex, staggered lifting sequences of 5-end or 8-end satin patterns, which basic cam mechanisms cannot physically accommodate.
A: Common defects include tension variations causing fabric puckering, snagged or broken warp floats from mechanical abrasion in the reed, and weft loops caused by inconsistent water pump pressure during insertion.
