Upgrading a weaving factory to modern shuttleless technology requires massive capital expenditure. The fundamental cross-weaving principle remains unchanged since manual looms first appeared. However, the shift to fluid-based weft insertion drives exponential leaps in machine RPM and overall output.
Both air jet looms and water jet looms offer distinct advantages in speed and efficiency. Yet, they serve entirely different operational models on the factory floor. Choosing the wrong system quickly leads to bottlenecked production, incompatible material waste, or unsustainable utility bills.
This guide strips away marketing claims to objectively compare these two technologies. We evaluate production versatility, true operational costs, and the hidden implementation risks. You will learn how to match the right weaving equipment to your specific target market and facility infrastructure.
Material dictates the machine: Water jet looms are strictly for hydrophobic (synthetic) materials; air jet looms can process almost anything, including natural fibers and fiberglass.
The hidden cost of Air Jet: High reliance on premium, low-shagginess yarns to prevent weft defects, plus higher energy consumption due to air compressors.
The hidden cost of Water Jet: Intense reliance on veteran operator experience for physical pressure tuning, alongside higher ongoing mechanical maintenance.
ROI timeline: Air jet looms require higher initial CapEx and expensive parts but offer unmatched versatility for changing market trends. Water jet looms offer a faster ROI for bulk, standardized synthetic fabric runs.
Understanding baseline capabilities starts by examining how these machines propel yarn. Traditional looms relied on heavy wooden shuttles. Modern systems replace mechanical friction by using fluid mediums. This single engineering shift changes everything about how a weaving factory operates.

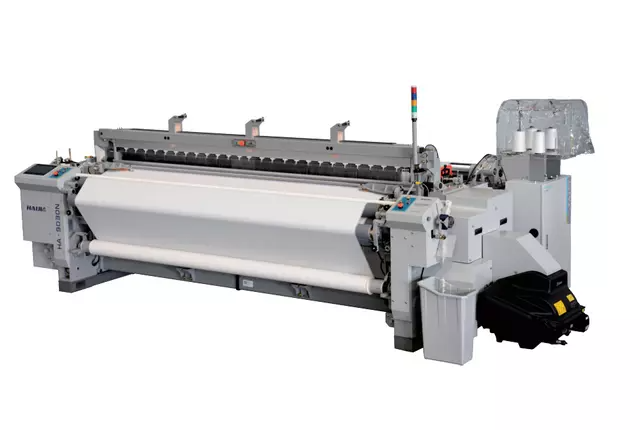

The Air Jet Loom utilizes compressed air to carry the weft yarn across the shed. It relies on a highly synchronized system of pneumatic components.
Main Nozzles: These accelerate the yarn from the initial starting point.
Relay Nozzles: Positioned across the reed, they fire in sequence to keep the yarn moving.
Profiled Reed: This specially shaped metal comb guides the airflow and prevents the air from dispersing.
Electronic Sensors: They monitor the yarn flight path in milliseconds, stopping the machine instantly if a thread breaks.
Because compressed air lacks physical mass, this system demands exceptional precision. The machine uses advanced electronic tension controllers to maintain constant yarn speed. Outcome: You achieve seamless, high-speed insertion. It handles delicate yarns at extreme RPMs without causing friction damage.
Water jet systems take a more forceful, analog approach. They use a concentrated stream of high-pressure water to carry the yarn.
Integrated Water Pumps: They draw water and pressurize it for every single insertion.
Direct Nozzle: A single nozzle shoots the water stream, pulling the yarn across the loom.
Catchment Systems: Specialized drains capture excess water for recycling or disposal.
Operators control tension physically by adjusting the water pressure valve. There is far less electronic intervention. Outcome: You get faster absolute speeds for specific synthetic materials. The water acts as a gentle lubricant. This minimizes mechanical friction on the yarn during the rapid insertion phase.
You cannot force a machine to weave a material it inherently rejects. The most critical decision factor in your factory upgrade is matching the equipment to your target fabric market.
We recommend the Air Jet Loom when your business model relies on adaptability. Market trends change rapidly. A diverse portfolio keeps your factory competitive.
Broad Material Scope: It effortlessly handles natural fibers like cotton, wool, and silk. It weaves blends and technical textiles like fiberglass or Kevlar. Because air is dry, it does not alter the chemical or physical structure of the fibers.
Complex Designs: It excels at producing high-end garments, custom bedding, and intricate jacquard patterns. The machine adapts to different yarn thicknesses without requiring drastic speed reductions.
Multi-Color Capabilities: Modern pneumatic systems can manage up to eight different weft colors simultaneously. This makes it ideal for fashion-forward textile production.
Water jet systems are specialized beasts. They do one thing, but they do it exceptionally well.
Strictly Synthetics: They are unbeatable for hydrophobic fibers like polyester, nylon, and acetate. Crucial constraint: You cannot use them for natural fibers. Cotton absorbs water, swells, and loses its structural integrity. Weaving wet cotton results in weak fabrics and severe mildew risks.
Dense, Heavy Fabrics: They are highly efficient for tapestries, upholstery, and tightly woven internal textures. The water stream provides excellent tension control for heavy synthetic yarns.
Smooth Finishes: The fluid dynamics ensure the yarn lays perfectly flat. This produces incredibly smooth surface finishes required for rainwear or luggage linings.
Factory owners often encounter contradictory claims regarding machine efficiency. Equipment vendors highlight peak speeds while downplaying utility bills. Let us separate marketing myths from operational reality.
The Myth: Pneumatic systems are universally faster across all applications.
The Reality: Water jet looms often achieve higher absolute speeds. On a long, uninterrupted run of standard polyester taffeta, a water jet machine can exceed 1,200 RPM easily. The water stream provides massive kinetic energy to pull the synthetic thread.
However, an Air Jet Loom maintains higher effective efficiency. "Effective efficiency" accounts for downtime during style changes. If you switch patterns or yarn types frequently, the pneumatic system adapts quickly via electronic presets. Water systems require time-consuming mechanical recalibrations.
Utility bills often dictate the long-term profitability of your weaving shed. You must evaluate the raw power requirements.
Pneumatic Power Demand: These systems are inherently power-hungry. The central industrial air compressors run continuously. Compressing air generates heat and consumes massive amounts of electricity. Your factory power bill will spike significantly.
Hydraulic Power Demand: Water systems consume far less electricity. The localized water pumps are relatively small. However, you introduce high water consumption. You must install complex wastewater management systems. In colder climates, heating the water prevents yarn stiffness, adding another utility expense.
Every machine breaks down. How they break down dictates your maintenance budget.
Maintenance Metric | Air-Based Systems | Water-Based Systems |
|---|---|---|
Mechanical Wear | Low. Fewer moving parts touch the yarn directly. | High. Continuous moisture exposure accelerates rust and wear. |
Parts Cost | Very High. Sensors and precision nozzles are expensive. | Moderate. Mechanical pumps and valves are cheaper to replace. |
Intervention Frequency | Low. Highly automated self-cleaning cycles. | High. Requires frequent lubrication and manual cleaning. |
Spec sheets rarely tell buyers about the daily struggles on the factory floor. Every technology carries hidden dependencies. Understanding these risks prevents catastrophic production delays.
Airflow is invisible and unforgiving. The success of a pneumatic system relies entirely on yarn quality.
To prevent weft defects, the machine demands highly smooth, strong yarn. It must have minimal shagginess (hairiness). Protruding microscopic fibers catch the compressed air incorrectly. This alters the flight path, causing the yarn to tangle inside the shed.
Risk: Factories must budget for premium-grade yarn. If procurement buys cheaper, low-quality yarns to save money, disaster strikes. The machine will experience continuous stops. Defect rates will skyrocket. The constant machine halting completely negates the high-speed advantages you paid for.
Water jet systems introduce a different kind of risk: human capital. Unlike pneumatic machines that lean heavily on digital inputs, water systems are highly analog.
Risk: They are not plug-and-play devices. Achieving optimal tension relies on the intuitive tuning experience of veteran operators. A mechanic must physically adjust the water pump pressure based on the sound and feel of the machine.
If your factory lacks experienced technicians, you will struggle to optimize output. You might experience water spotting, uneven tension, or frequent yarn breakages. Training a new operator to master hydraulic tension takes years, not weeks.
Procurement teams need a structured evaluation path. Avoid buying machinery based solely on brand reputation. Match the equipment to your business model using these scenarios.
Your factory produces thousands of meters of identical polyester lining or nylon outwear fabric. You rarely change styles.
Recommendation: Water Jet Loom.
Rationale: You benefit from a lower initial CapEx. Your electricity costs remain manageable. You achieve superior absolute speed for bulk production. The fast ROI easily justifies the localized wastewater treatment setup.
Your buyers demand cotton, silk blends, and complex jacquard patterns. You change weaving styles twice a week to keep up with fast fashion trends.
Recommendation: Air Jet Loom.
Rationale: You require maximum versatility. You cannot risk water damaging your natural fibers. The ability to pivot quickly from heavy cotton to delicate technical fabrics justifies the high initial investment and larger energy footprint.
Sometimes, your geographic location dictates the decision. Evaluate your local labor pool alongside your capital budget.
If skilled labor is scarce but your CapEx budget is healthy, choose the pneumatic route. Its automated precision reduces your reliance on veteran tuners. The computer handles the tension.
If CapEx is tight but you have a highly experienced mechanical workforce, choose the hydraulic route. Your veteran staff will keep the analog machines running perfectly, offering a faster path to profitability.
Quick Summary Chart
Evaluation Category | Pneumatic Weft Insertion | Hydraulic Weft Insertion |
|---|---|---|
Best Fabric Fit | Natural, Blends, High-End Fashion | 100% Synthetics, Heavy Upholstery |
Primary Utility Cost | Electricity (Air Compressors) | Water Management & Treatment |
Labor Dependency | Low (Digitally Automated) | High (Requires Veteran Tuners) |
There is no universal "superior" machine in the textile industry. The decision hinges entirely on your factory's target fabric categories. It relies heavily on your local utility infrastructure. You must weigh the availability of cheap water against the cost of cheap electricity.
Furthermore, you must audit your supply chain. Ensure you have reliable access to the high-grade yarns required for pneumatic systems. Or, ensure you have the experienced mechanics necessary for hydraulic systems.
Next Steps: We advise procurement teams to conduct a localized cost-benefit analysis. Focus intensely on compressor energy costs versus wastewater treatment costs. Map out your projected yarn types for the next five years. Complete this internal audit before requesting specific vendor quotes.
A: No. Cotton is a hydrophilic (water-absorbing) natural fiber. Using water jet insertion will damage the structural integrity of the yarn. The fibers swell, causing weak spots, and ultimately ruin the finished fabric with mildew and defects.
A: Because compressed air lacks physical mass, any protruding fibers or hairiness on the yarn can disrupt its flight path. Weak points or unevenly spun fibers catch the air incorrectly, causing microscopic tangles and triggering costly automatic loom stops.
A: The air jet loom. Its reliance on advanced pneumatics, heavy-duty centralized air compressors, and precision electronic weft sensors makes it significantly more expensive to purchase, install, and calibrate than a comparable water-based system.
